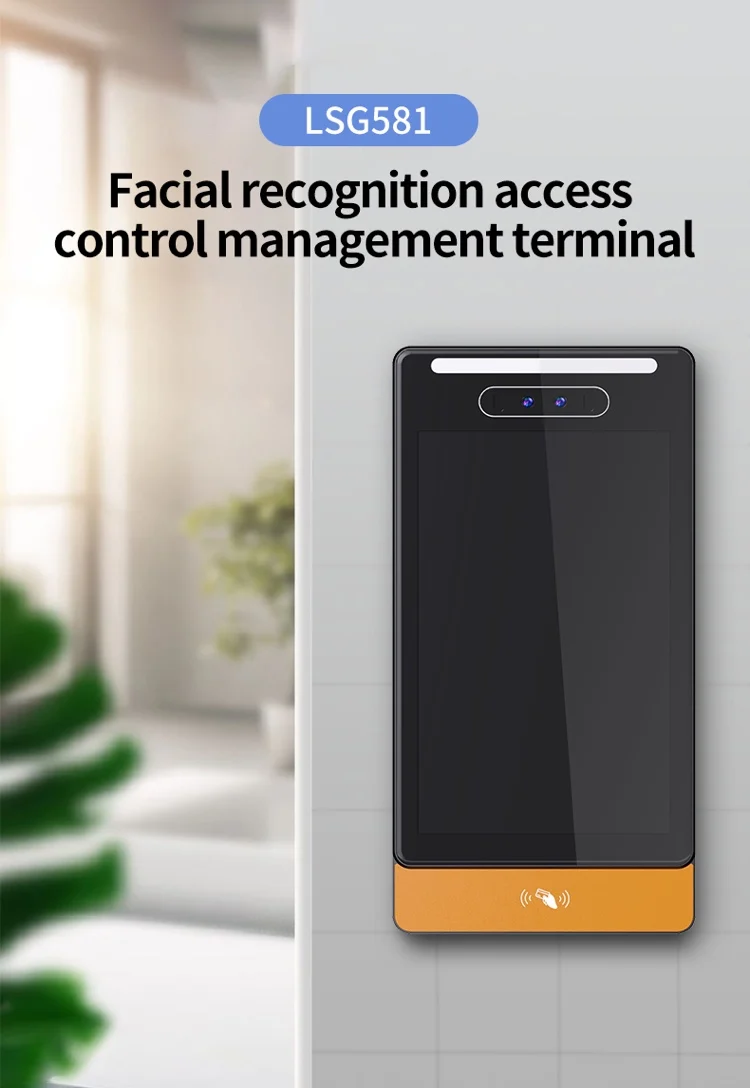

Enterprise Access Control Biometric Time Attendance Access Control Machine Intelligent Face Recognition Punch Card Machine

Description

#detail_decorate_root .magic-0{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-1{margin-bottom:0}#detail_decorate_root .magic-2{position:relative;width:100%}#detail_decorate_root .magic-3{width:750px;border-collapse:collapse}#detail_decorate_root .magic-4{min-height:28px;padding:5px 10px;width:726px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-5{text-align:center}#detail_decorate_root .magic-6{font-size:18px}#detail_decorate_root .magic-7{display:none}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:359px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:348px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:28px;padding:5px 10px;width:358px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-11{text-align:left}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:347px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{width:750px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:769px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:769px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:616px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:616px}

LSG581 Smart Access Control Parameters

Weight

about 1000g(main engine)

Size

252.3*130*20.3mm

Power

Voltage input: DC12V/3A

Rated power

15W, Max 30W

Work environment

Operation temperature:-10鈩儈+ 50鈩�,humidity: 10%~90% No Work environment condensation

Recommended Operation temperature: -10鈩� ~+ 40’鈩� , humidity 10%-80%

Display

8inches, brightness 600cd/m2,800*1280@60fps

Touch screen

Multi point G+G

CPU

4-core 2.0GHz Cortex-A55 CPU锛孯K3568

RAM

2GB LPDDR袟 RAM

ROM

32GB 械MMC

OS

Android 13

Built in speaker

Rated Power: 1*2W/8R

The RTC clock battery

YES, The button battery , Life>2 years

Network interface

Ethernet:10/100Mbps Base-T adaptive锛� RJ45

WIFI

2.4/5G锛�802.11a/b/g/n/ac;

BT

BT4.2(BR/EDR+BLE);

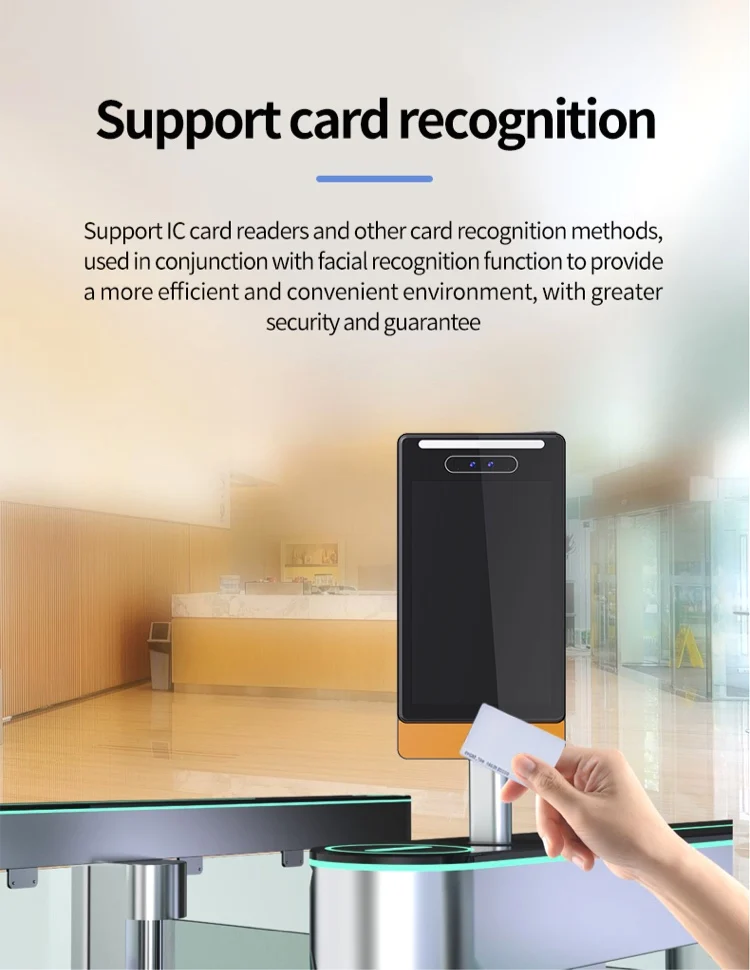

NFC

Card reading distance:>1cm

Communication frequency: 13.56MHz,

communication protocol:ISO/IEC 14443AB.IS015693

Supports Mifare S50/70, UltraLight, PlusCPU, CPU cards, etc

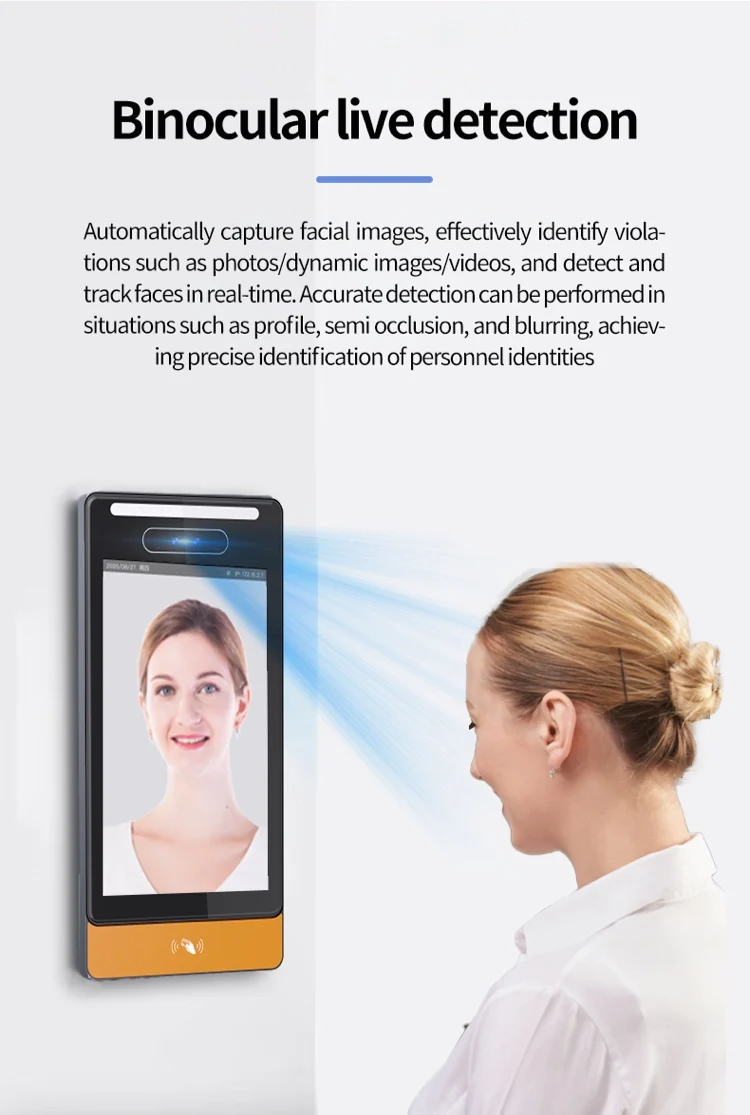

Camera module

RGB:2 million pixels,1/2.9″

Infrared:2 million pixels, 1/2.9 ”

Field of view angle: D70° H63° V38°

Facial recognition distance:30-100cm

Facial recognition speed: fastest 0.2 seconds, average 0.5 seconds

Fill light: White light fill light (switch controllable) and IR fill light

External interface

USB2.0:1*USB2.0 TYPE-A

Network interface: RJ-45 interface

Relay Interface: 3.81mm Connector

RS485 interface:3.81mm Connector

Powerinterface:DC5521 interface.12V 3A

Installation method

Hanging installation(standard hanging bracket),

Desktopinstallation(optional desktop bracket)

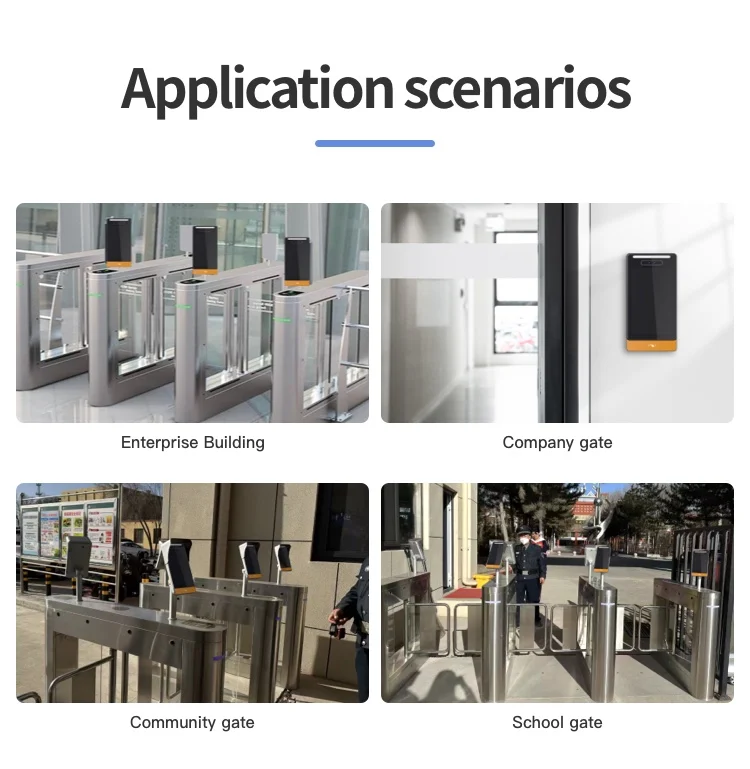

Face recognition intelligent access control machine is mainly used in school access control, traffic places, enterprise buildings, company access control and other occasions

Hangzhou Leshun Information Technology Co., Ltd.Founded in 2017, with a total number of employees of more than 40, a core technical team of 25, and 38 professional qualifications (4 utility models, 29 software products, and 5 appearance patents). It is one of the high-tech enterprises engaged in the research and development and application of AIOT. Adhering to the development strategy of “technology leading and efficiency driven”, the company focuses on the K12 campus scene, takes the group meal payment product as the entry point, and is committed to becoming an innovator and leader in providing intelligent hardware services for K12 campus scene. In addition to consolidating K12 campus scene business, the company has gradually penetrated into university and enterprise scenes from 2022.
