NFC Android 14 Handheld Smart POS Terminal with NFC Card Reader 1D 2D Barcode Scanner R330 Plus

Description

NFC Android 14 Handheld Smart POS Terminal with NFC Card Reader 1D 2D Barcode Scanner R330 Plus

Product Description

Based on the Android 13 deeply customized OS, process system, and more worry free ecological adaptation – special selling points, there is currently no Android 14 handheld terminal product in the market;

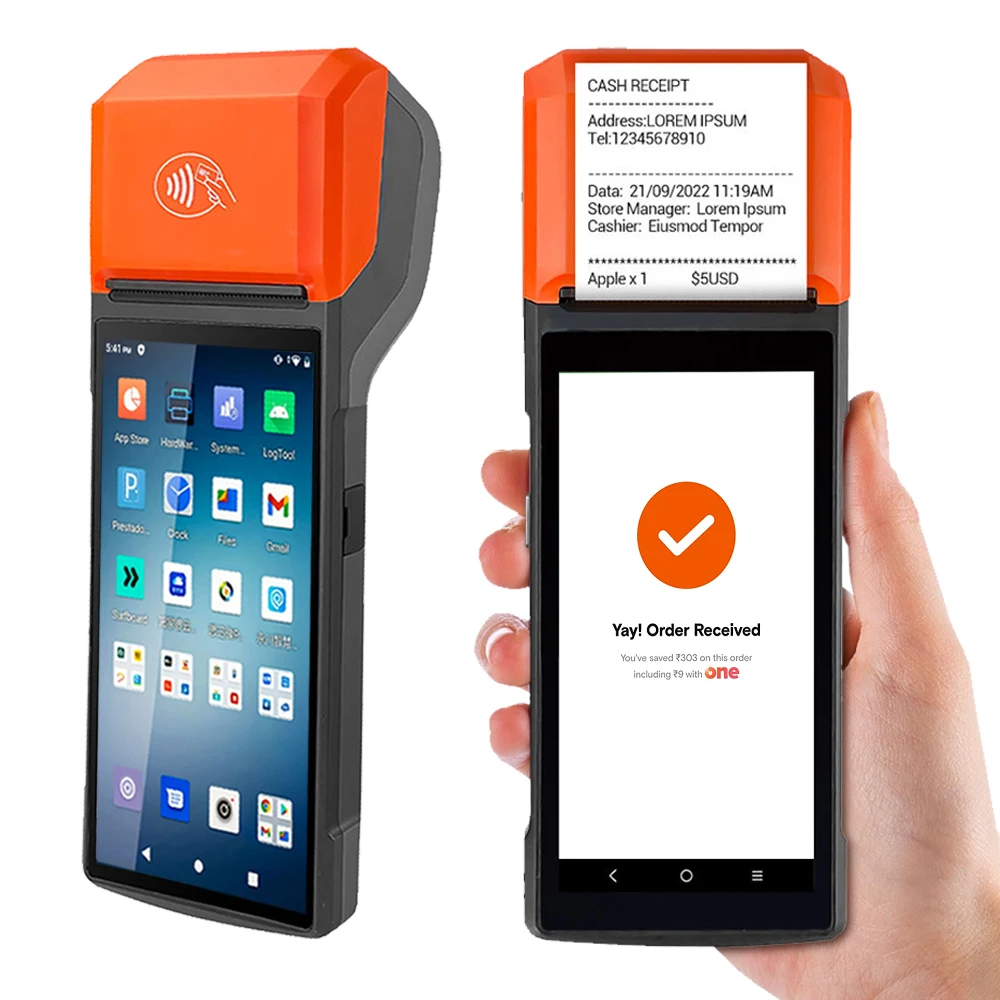

Professional All In One POS Terminal

1.NFC Contactless Payment: NFC payments on the R330 Plus are fast and secure, reducing checkout time, eliminating the hassle of
card handling, and adapting to the future payment trend.

2.QR Code Payment: The R330 Plus supports QR code payments from various platforms, with easy setup, the ability to integrate marketing information, and high cost-effectiveness.

3.Receipt Printer: The built-in receipt printer prints clearly and quickly, supports customization, has reliable paper handling, and ensures a smooth checkout process.

4.GMS Certification: With GMS certification, the R330 Plus is globally recognized, allowing full access to Google services, receiving regular security updates, and enhancing the operation experience.

Slim body: Large “core” and dirty: The new generation handheld POS flagship configuration
has a larger screen, stronger core, and longer battery life;

Upgrade and select 3+32 large memory for a more user-friendly process experience.

Dual band WiFi, 4G band full coverage, no distinction between Europe and Asia, supporting multiple languages;

Upgrade the optional QR code scanning module to support one-dimensional and two-dimensional scanning, making checkout and settlement more efficient;

Starting from the product structure design, moisture-proof and splash-proof measures should be taken, and the rear shell should not be tightened with a single screw; Key interface, incorporating rubber plug design to prevent water and oil stains from entering the equipment – special selling point;

Equipped with a free remote terminal management system, hardware dynamic viewing and monitoring, multi-level account classification management, exclusive application store, customized software deployment, handy – special selling points;

Product Paramenters

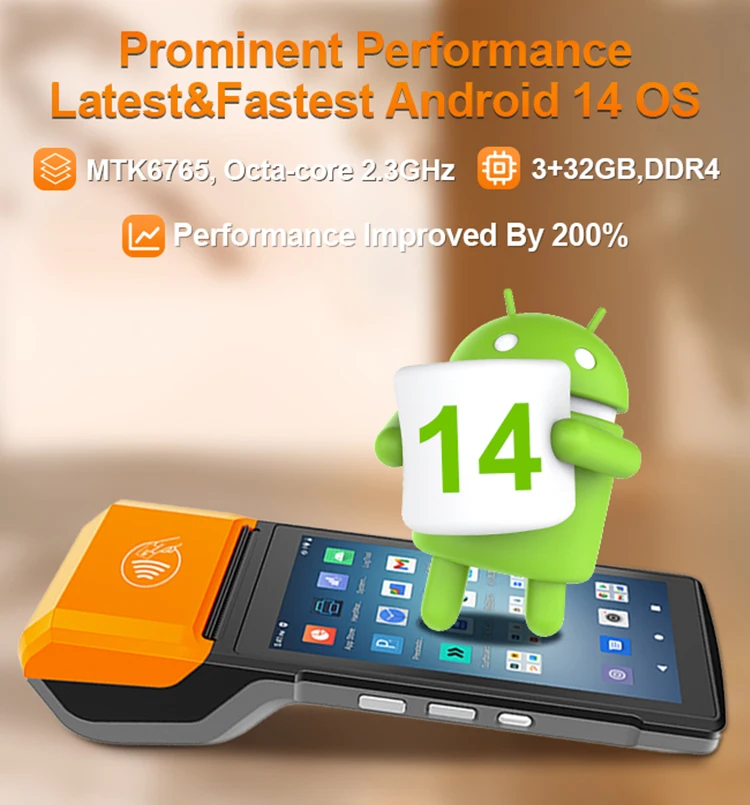

Operating System

Android 14 GMS certified

Processor

MTK6765, Octa-core, 2.3GHz

Memory

3GB RAM+32GB ROM, DDR4

Display

5.5″HD, 1440 * 720, capacitive Multi-touch

Camera

Rear: 5.0 MP auto-focus with flash LED, support 1D/2D

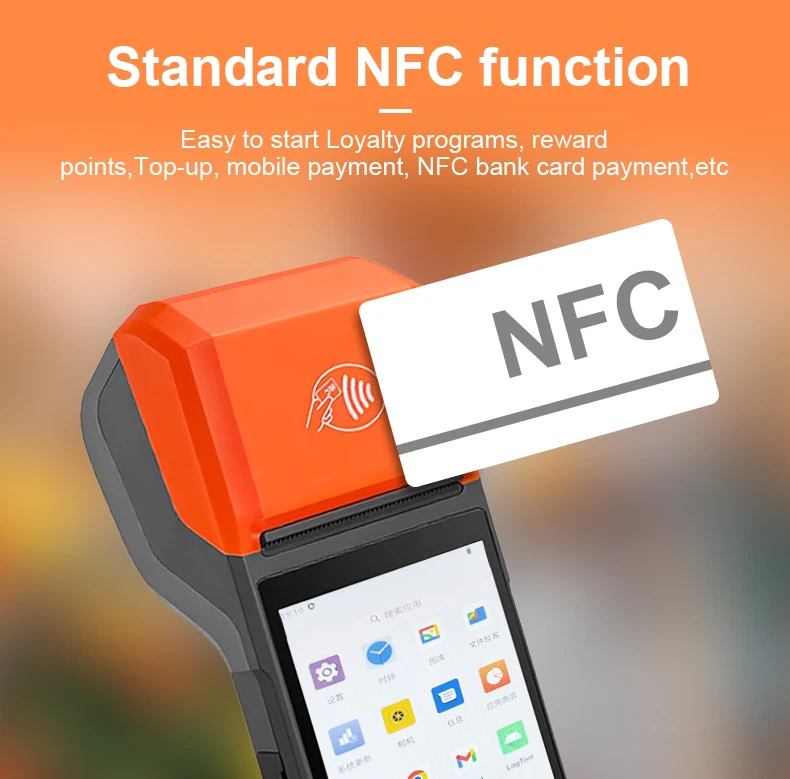

NFC Reader

(Standard)

Type A&B card, Mifare card, Felica card
ISO/IEC 14443 and ISO 15693 complaint

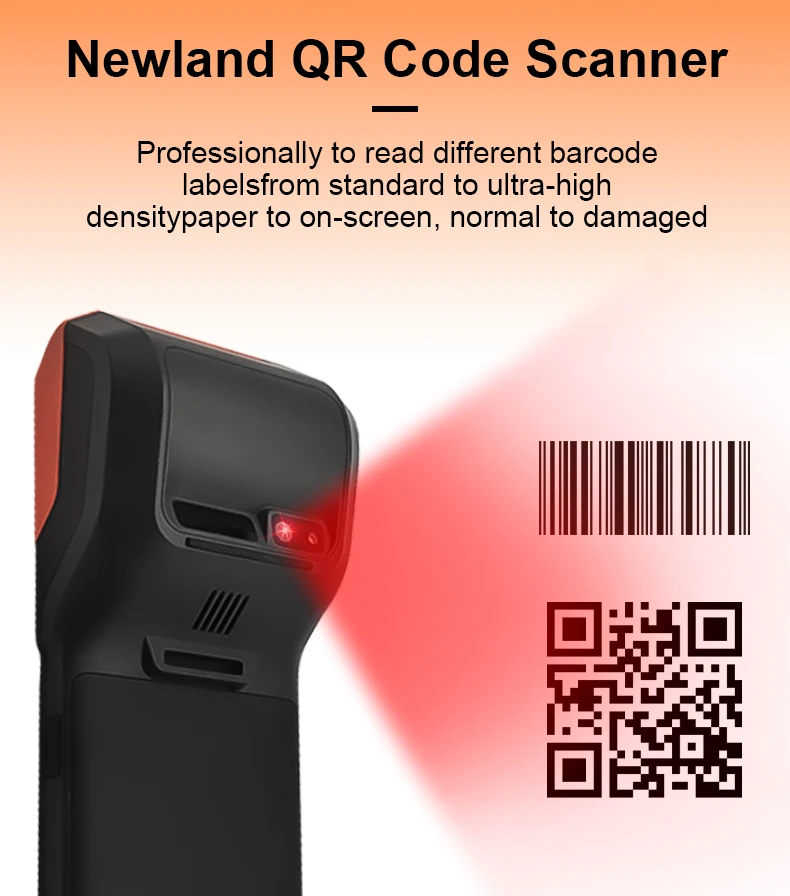

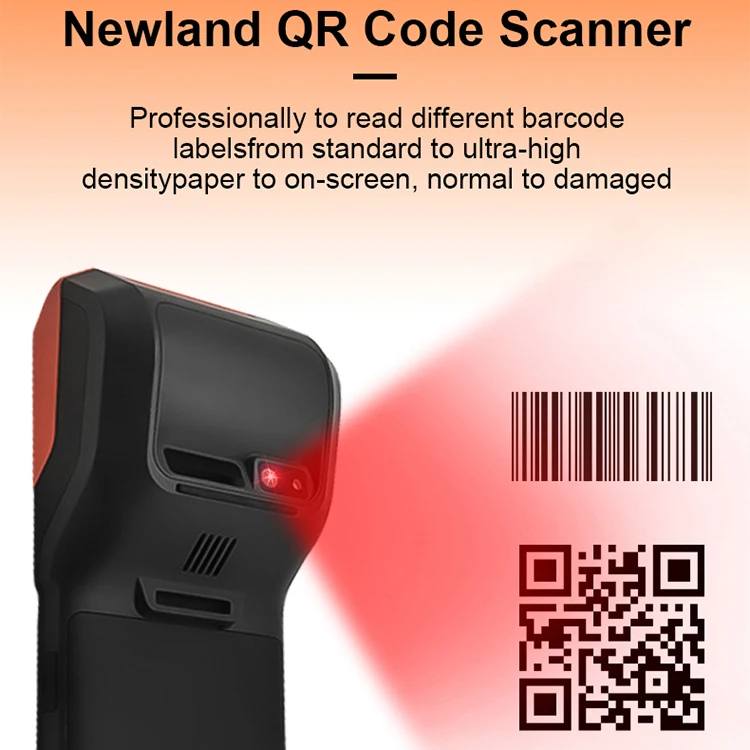

Scanner (optional)

Newland 1D&2D barcode scan module, support 1D/2D scan

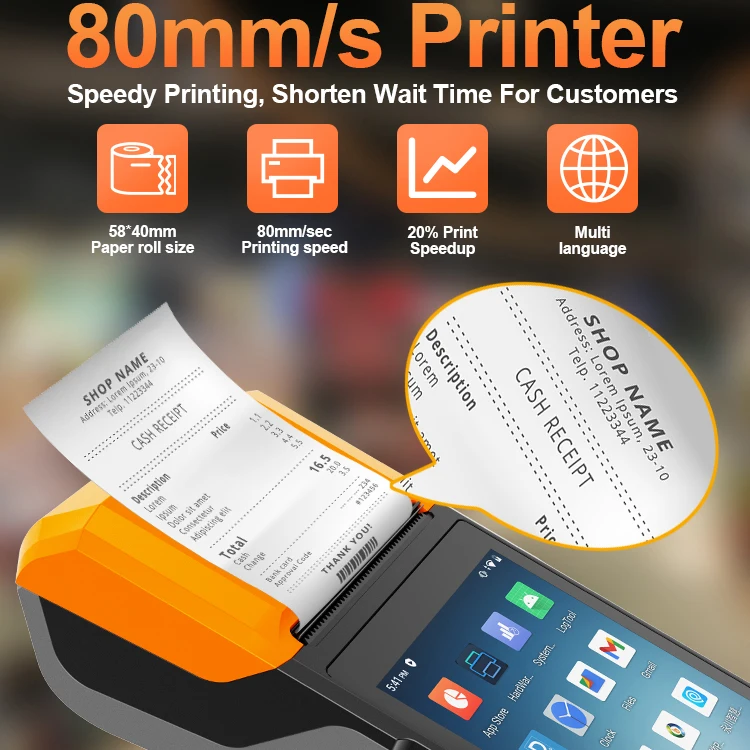

Printer

Built-in 58mm thermal printer
Printing speed up to 80 mm/s
Paper roll: 58 * 40 mm

Battery

Removable, polymer lithium-ion battery
7.7V 3000mAh (equal to 3.85V 6000mAh)
TUV CB Safety verify

Certificates

CE/FCC/ROHS/GMS

Network

2G&3G&4G network
2G/GSM: B2/B3/B5/B8
3G/UMTS (WCDMA): B1/B2/B4/B5/B8
4G/TD-LTE: B38/B39/B40/B41
4G/FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28

Card

slots

1 * Nano SIM+ 1 * Micro SIM card slot
1 * Micro SD expand card slot

Wi-Fi

2.4G/5G IEEE 802.11 a/b/g/n/ac

Bluetooth

BT 2.1/4.2/5.1

Speaker

1 * 1W

GPS

GPS& AGPS

Interface

1 * Type-C, support OTG

Power

Adapter

Input: AC 100~240V
Output: DC 5V/2A

Working

Environment

Working temperature: -10~50℃
Storage temperature: -20~60℃

Body

Dimension

219 (L) * 80 (W) * 17.9 (H)mm
NW (with battery): 345g

Package

Size

Single box: 23 * 9 * 6cm, GW: 0.65kg
Carton Size: 32 * 24.5 * 21 cm
GW: 6.8kg (10 pcs)

Package list

Adapter * 1, Type-C * 1, Thermal Paper Roll 58 * 40 * 1, Manual * 1

Accessories Optional

Tempered Screen protector, Hand Strap, Silicone Case Bag

Application:
Full scene coverage: ticket printing, membership management, QR code payment, mobile ordering, takeout orders, queuing, parking management. Industry wide coverage: retail, catering, local living services and other formats.
