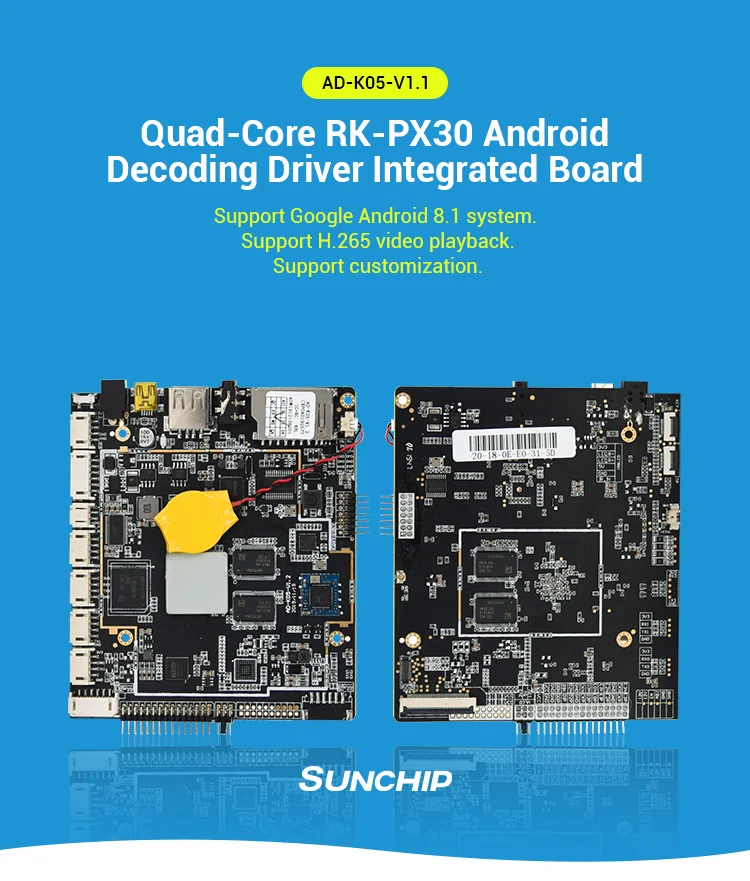

Industrial Grade 64-bit Low-power PX30 Chip Android System on Module Board Applied to IoT Devices, Vehicle Central Control

Description

#detail_decorate_root .magic-0{border-bottom-style:dashed;border-bottom-color:#fff;font-family:Roboto;font-size:24px;color:#fff;background-color:#244dbb;text-align:center;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-2{margin-bottom:0}#detail_decorate_root .magic-3{position:relative;width:100%}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:18px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:18px;padding:5px 10px;width:579px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:125px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{display:none}#detail_decorate_root .magic-9{width:750px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:354.296875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:354.296875px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:421.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:421.875px}#detail_decorate_root .magic-14{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-15{position:relative}#detail_decorate_root .magic-16{position:absolute;left:12px;top:12px;height:24px;z-index:3;overflow:hidden;background-color:#3a3531;display:flex;align-items:center;border-radius:12px;font-size:12px;color:white;padding:2px 6px}#detail_decorate_root .magic-17{height:24px;width:24px;background-image:url(“//img.alicdn.com/tfs/TB1fYbeJ4z1gK0jSZSgXXavwpXa-144-144.gif”);background-repeat:no-repeat;background-size:cover}#detail_decorate_root .magic-18{margin-left:4px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:421.7411988582303px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:421.7411988582303px}#detail_decorate_root .magic-21{vertical-align:top}#detail_decorate_root .magic-22{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-23{font-size:18px}#detail_decorate_root .magic-24{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-25{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-26{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-27{font-size:20px}#detail_decorate_root .magic-28{width:446px}#detail_decorate_root .magic-29{overflow:hidden;width:446px;height:330.63466666666665px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:-70.17066666666666px;margin-left:0;width:423px;height:423px}#detail_decorate_root .magic-31{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-32{font-size:16px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:963px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:963px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:693px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:693px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:700px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:-19px;margin-left:-3px;width:750px;height:729.375px}#detail_decorate_root .magic-39{background-color:#fff}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:254px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:254px}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:587px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:750px;height:587px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:646px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:646px}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:858px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:858px}#detail_decorate_root .magic-49{overflow:hidden;width:750px;height:325px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-50{margin-top:0;margin-left:0;width:750px;height:325px}#detail_decorate_root .magic-51{overflow:hidden;width:750px;height:560px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-52{margin-top:-64px;margin-left:2px;width:750px;height:634px}#detail_decorate_root .magic-53{text-align:center}#detail_decorate_root .magic-54{font-size:24px}

Products Description

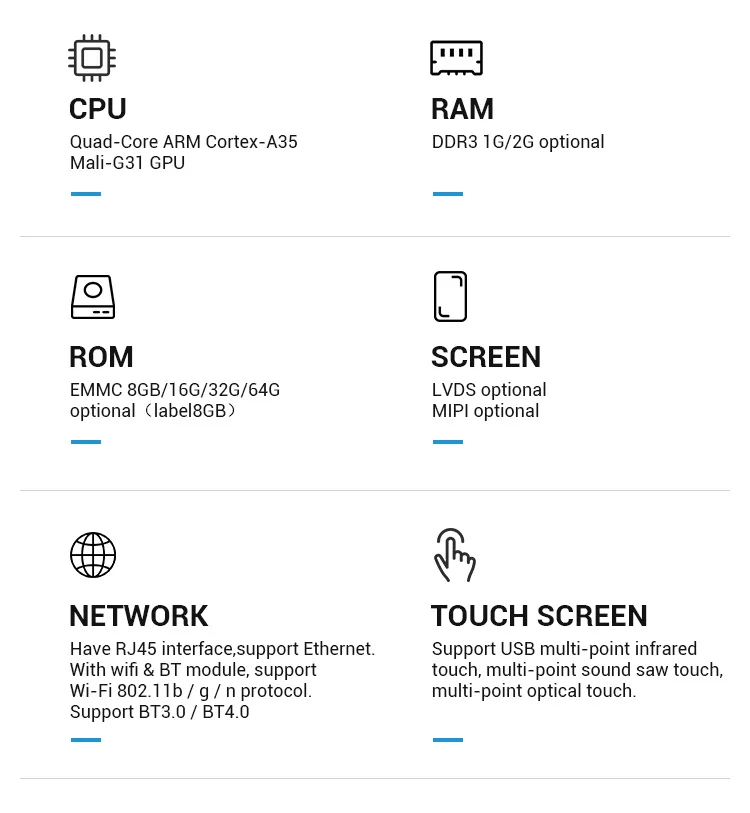

CPU

Rockchip RK-PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU

Frequency

1.5GHz

RAM

DDR3 1G/2G Optional (Lable 1GB)

ROM

EMMC 8GB/16G/32G/64G Optional锛圠able 8GB锛�

Display interface

LVDS interface (single, 6-bit dual, 8-bit dual). Support maximum resolution 1920×1080, support 7″-84″ display

EDP Interface

MIPI Interface

Screen voltage

3.3V/5V/12V optional

Touch Screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

Internet

With RJ45 interface, support 10/100 Ethernet.

Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 (option WIFI 802.11 a/b/g/n/ac 5G&2.4G)

Image rotation

Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function

Real Time Clock

External real-time clock power supply battery

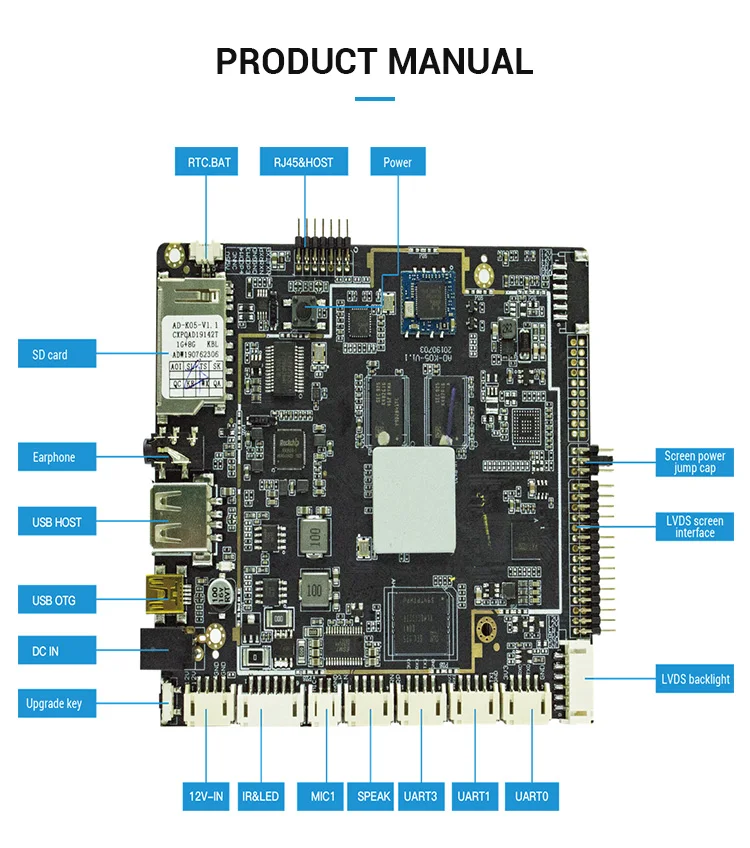

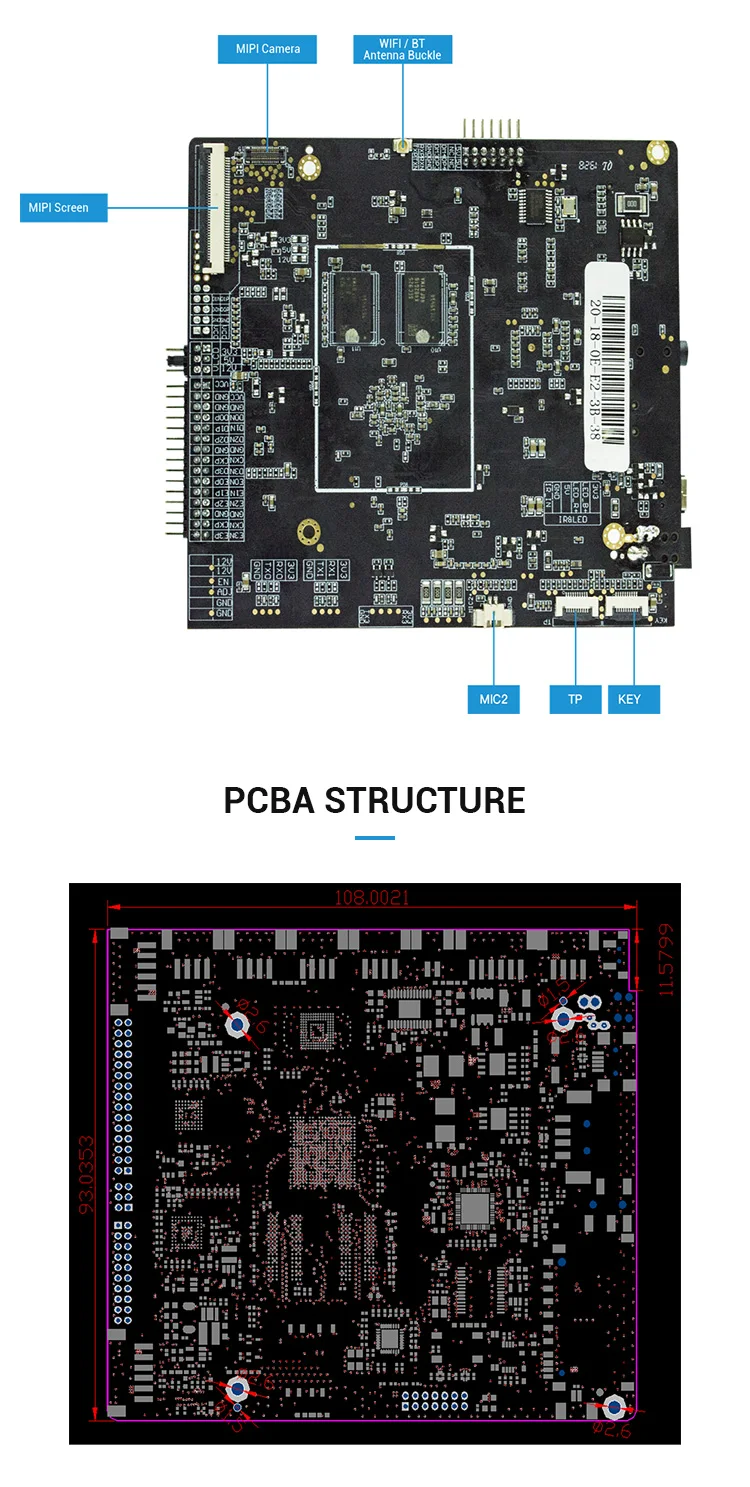

Interfaces

Support MIPI interface camera, up to 500W pixels

3 USB HOST (secondary board), support usb camera @500W usb printer, U disk, mouse, keyboard, standard USB peripherals)

3 groups of serial ports. Support external serial port device module (3G module, NFC module, printer, card reader, etc.)

SD card, maximum support 32GB

Class D power amplifier: 3W*2 8 ohms, support microphone

Audio

MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP鏍煎紡

Video

Support 4K 60fps H.265,H.264,VC-1, MPEG-1/2/4, VP8 video decoding; support 1080P H.265/VP8 video encoding


Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function

Adapter

Input锛欰C100-240V.50-60HZ锛� Output锛� DC12V /3A

Customization

Recommend Products

VR

About Sunchip

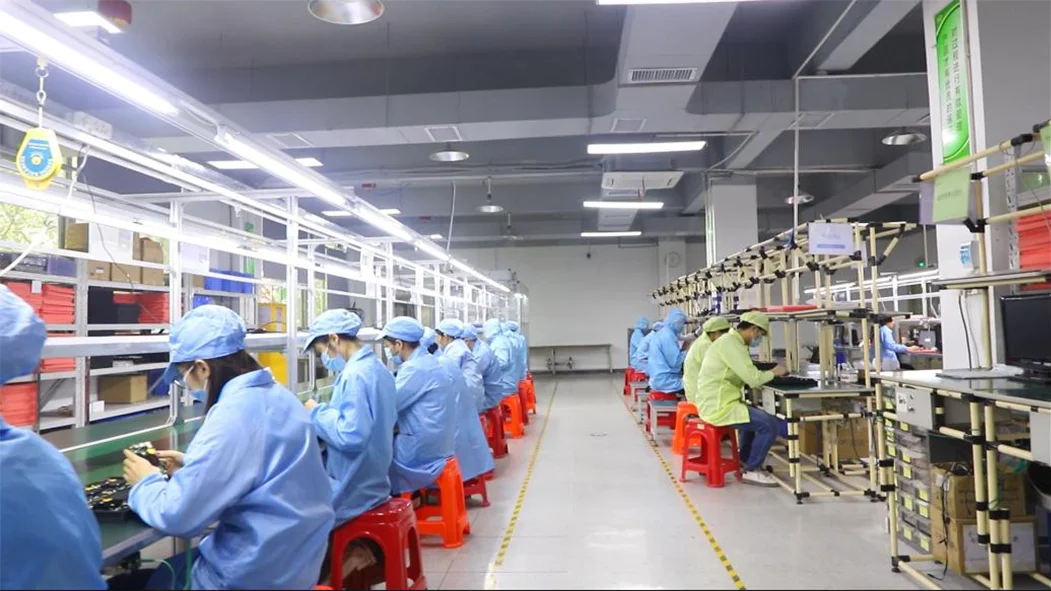

1. 15 years experience in PCBA2. Strong R&D team over 70 people 3. Factory passed ISO9001 quality system certification4. Big workshop area of over 3500 square meters with more than 200 employees.5. Have a senior R&D team, with hardware engineers, software engineers, product engineers and so on, can undertake all kinds of OEM/ODM orders processing and production;6. One-stop production of the factory, from PCB patch. Plug-in. Test. Assembly. Packaging and shipment are completed in this factory, reducing the flow of intermediate links;7.We can support drop-shipping for 1pcs, welcome to order, and welcome to visit the factory.

We mainly manufacture1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,RK3328, RKPX30, RK3188, RK3128 etc.2, 銆�4K銆慉ndroid media player box for digital signage advertising: RK3399, RK3288, RK3328.3, 銆�8K銆慉ndroid Player Box for Industrial-Control Application: RK3588.4, Stretched lcd Display signage, support ODM.5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.6, SKD Kit: Android board + LCD panel with touch or not:7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.8, Embedded touch desk: such as 32inch.9, Face recognition temperature detection terminal machine: such as 8inch.[you can also tell us your requirements, so that we advise you a matched solution]

Welcome to contact us for specification details and customize service!

Our Advantages:

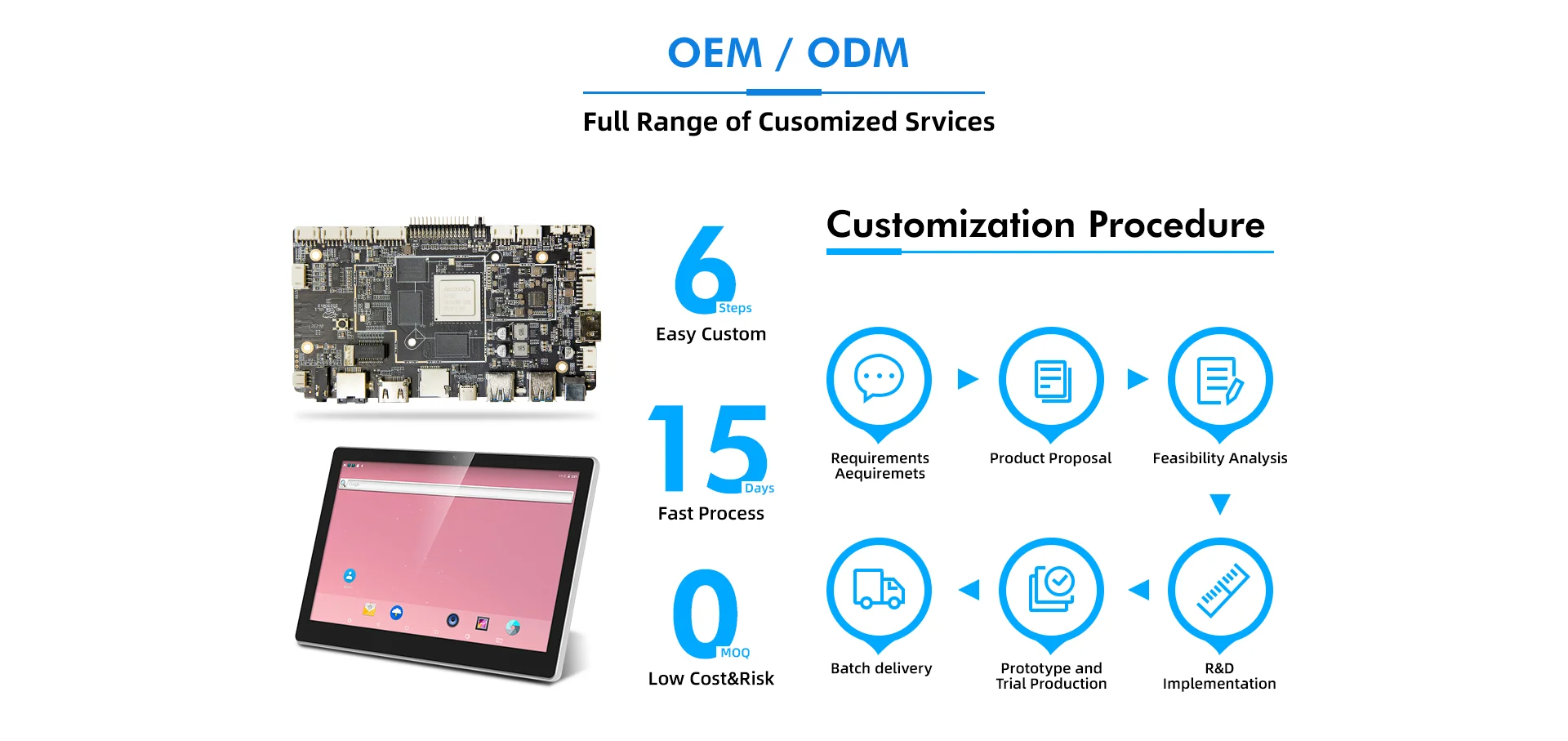

1. PCBA design2. Housing design3. Software and hardware customization4. Logo print on housing5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function6. Good quality products 7. full after-sales service with technology support 8.100% QC check before shipping

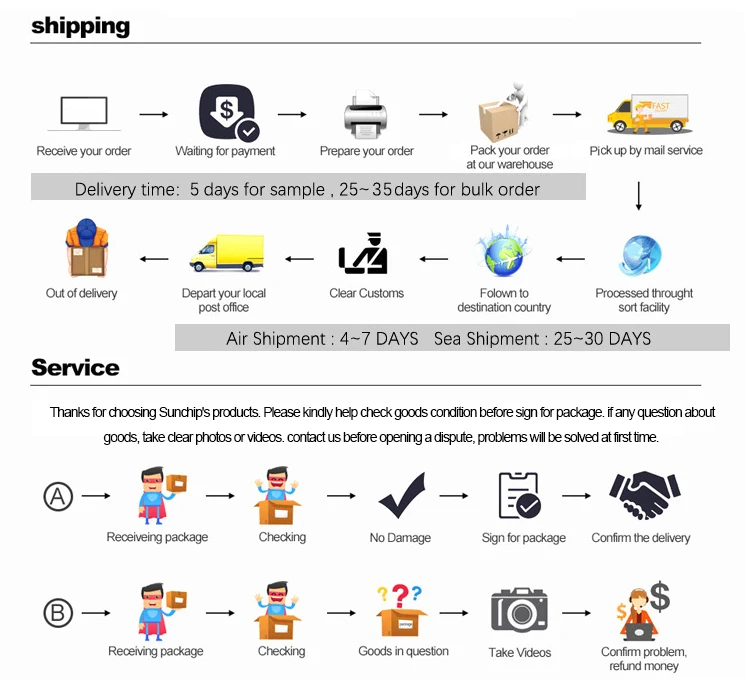

Packing & Delivery

1.Packing: carton box or wood case 2.Payment methods: accept T/T,Western Union,Paypal and Cash. 3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge. 4.Warranty: 12 months warranty. Paid maintenance over 12 months. 5.Remark: ROHS, CE & FCC certificates in e-file format are available. 6.MOQ: 1pc, sample order are welcome for your evaluation.

Why Choose Us

1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider. 2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development. 3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 15 years of experience gives us the edge! 4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages. 5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength. 6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.

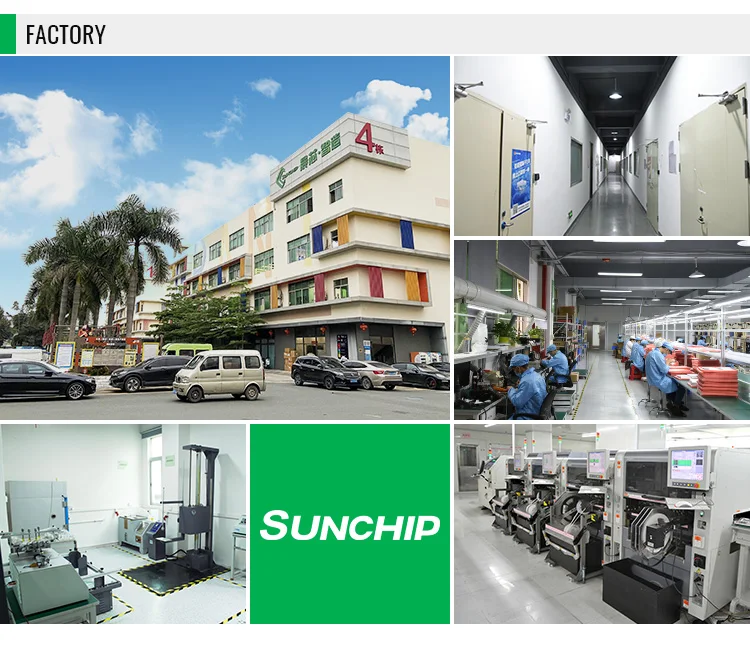

Company Profie

SHENZHEN SUNCHIP TECHNOLOGY CO.,LTD

Established in 2011, SUNCHIP is a high-tech engineering company specialized in designing and manufacturing Digital signage, Embedded digital signage, ARM board and Andriod-based customized products, which are compliant with CE, FCC and RoHS standards.

SUNCHIP has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory.With more than 100 experienced R&D engineers’ hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass production technology.

SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable chipsets and unlimited technical support from the partners.

Certifications

Our certified products also show how we are serious about our exports, for example, CE,UL,RoHS,FCC, ISO9001.We have invested quite a lot of money in this aspect, which is enough to show our control and confidence in quality.

FAQ

1) Q: Is SUNCHIP a factory or simply a trading company? A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue. 2) Q: What payment methods are available to me? A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash. 3) Q: How long is the warranty time? A: 1 Year. 4) Q: What are the shipment terms and delivery times of your company? A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping. 5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges. 6) Q: I would like to add my company logo on your products, is this possible? A: SURE.We customize on a regular basis products for many large retailers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methods are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
