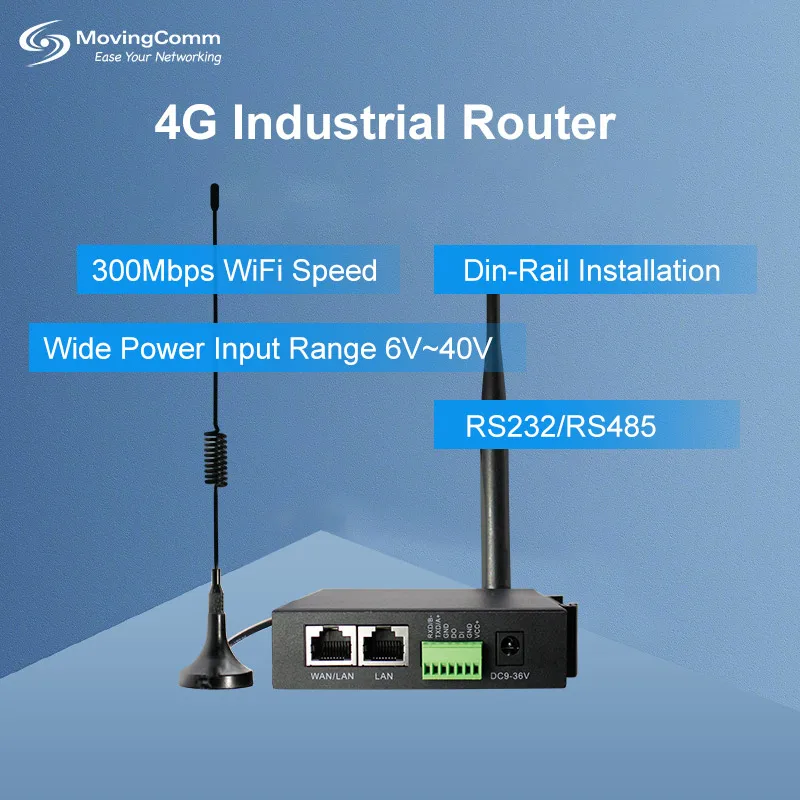

Openwrt Mini Rs485 Rs232 Terminal Industrial Sim Car Vpn Lte Cpe Iot Gateway Wireless 4G Wifi Gsm Modem Router With Sim Card

Description

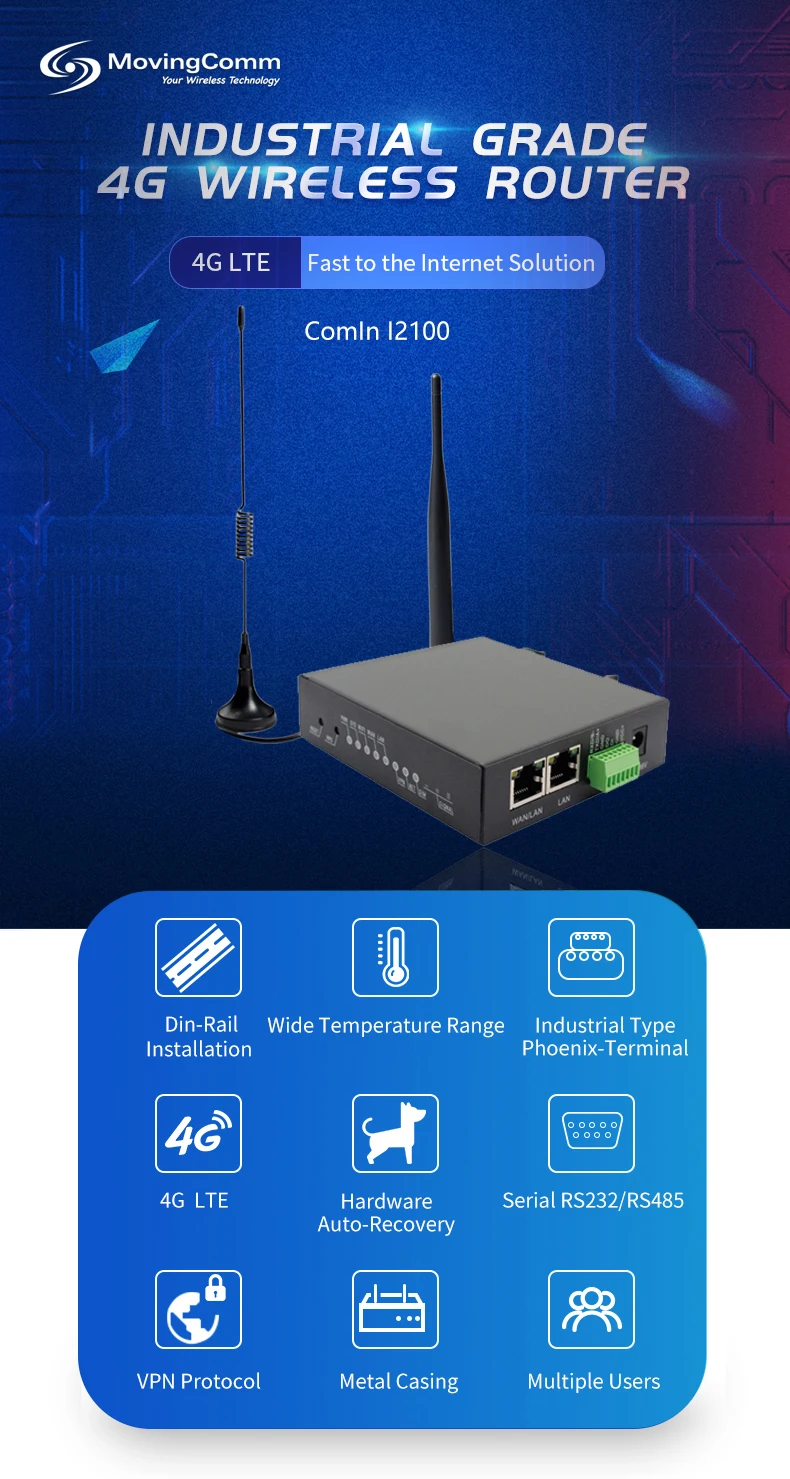

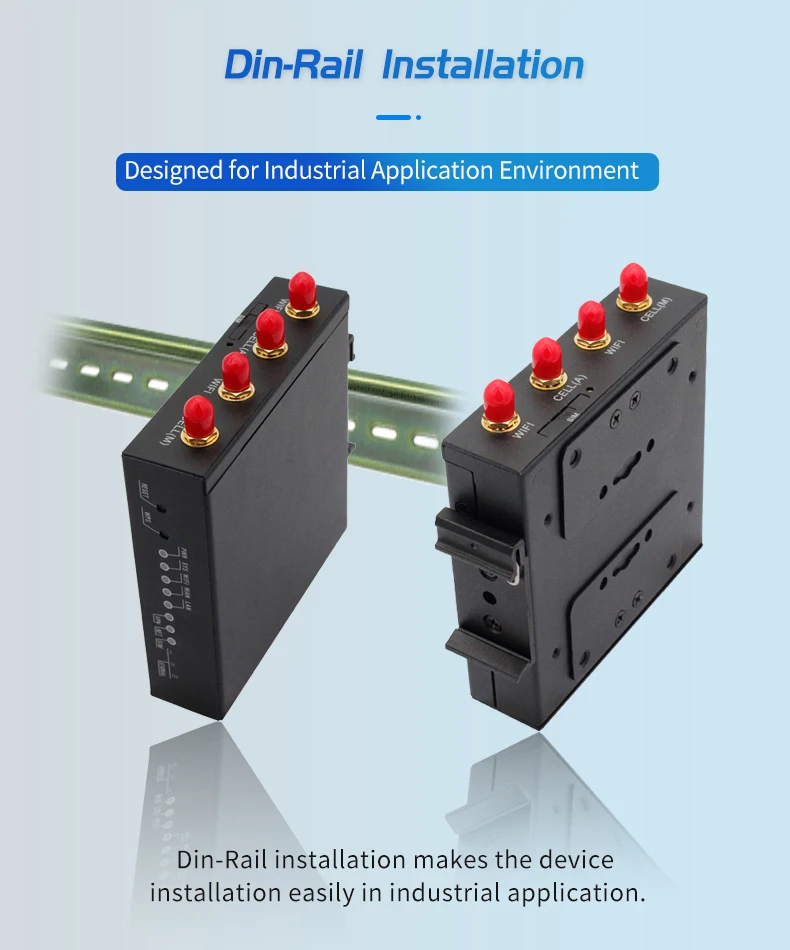

  2021 NEW ITEM    Model I2100 Industrial Grade 4G LTE Wireless Router support SERIAL Terminal Block support Din Rail Mounting

Hardware Specifications

CPU
32-bit MIPS 24KEc Industrial Grade Chipset, Core Frequency 575/580MHz

System Memory
64MB / Optional 128MB DDR2 RAM

Flash
8MB / Optional 16MB SPI Flash

LTE

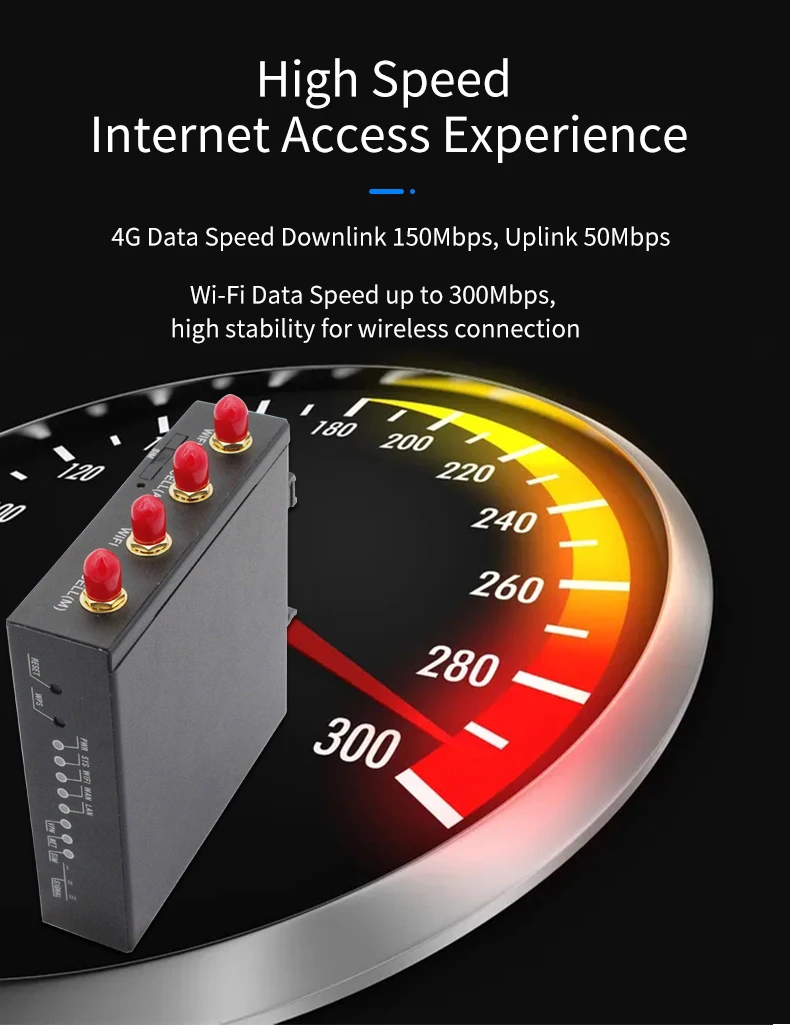

4G LTE Cat4 Modem, LTE FDD, LTE TDD, WCDMA, GSM Bands

Wi-Fi
Wi-Fi 4 (802.11n)

2.4GHz IEEE 802.11n MIMO up to 300Mbps

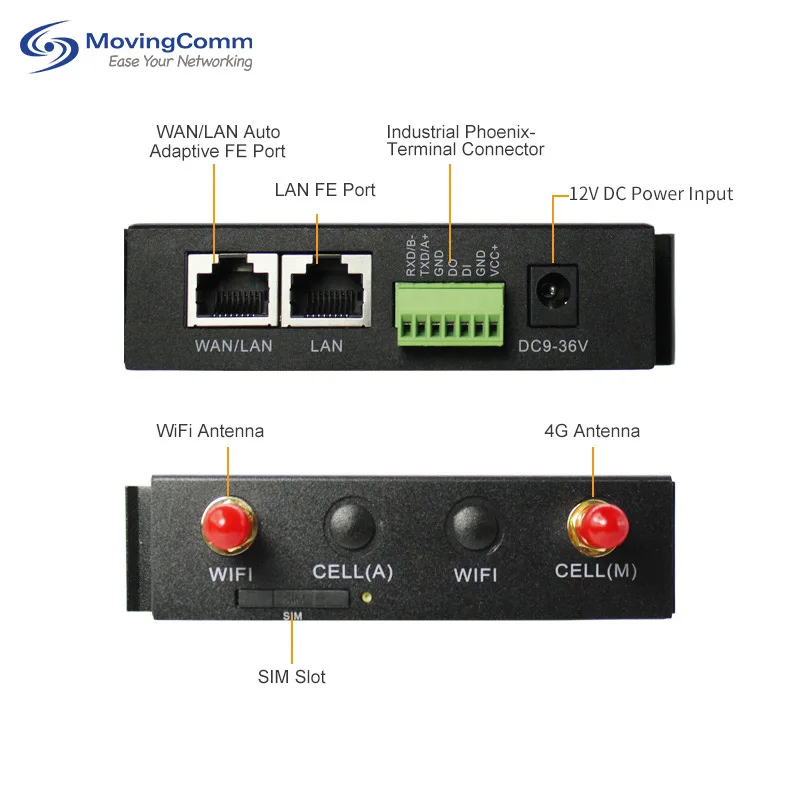

Interfaces
WAN
1 x 10/100Mbps FE RJ45 Port, auto MDI/X, with 1.5KV magnetic isolation protection

LAN
1 x 10/100Mbps FE RJ45 Port, auto MDI/X, with 1.5KV magnetic isolation protection

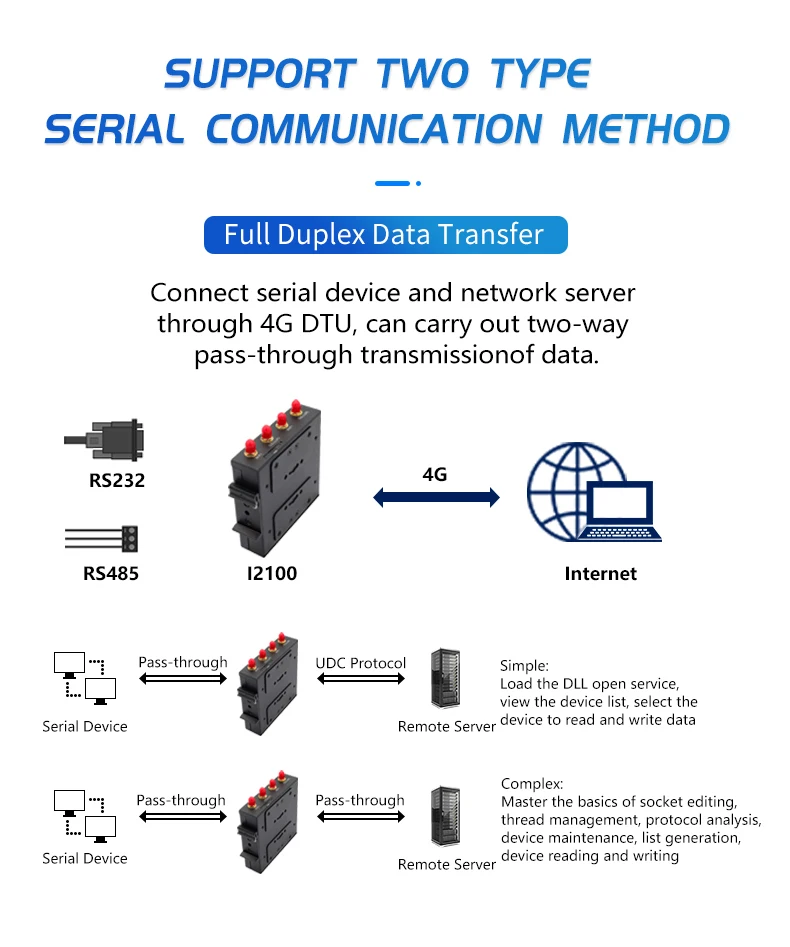

SERIAL
2.54 Standard Phoenix Style terminal Block Connector, Support RS232/RS485 Serial Connection. Include DC power Input Pin DI, DO

SIM
1 x Drawer-Type SIM Card Holder, Support Standard 1.8V/3V USIM/SIM Card, 15KV ESD Protection

Power
Standard DC Power Input Jack, reverse-voltage protection and surge protection

Reset
1 x Reset Button

WPS
1 x WPS Button

Antenna
1 x Standard SMA Antenna Connector, 50 ohm (Cellular)

Optional Add-on 2nd Cellular Antenna for Auxiliary

1 x Standard RP-SMA Antenna Connector, 50 ohm (WiFi)

Optional Add-on 2nd WiFi Antenna for MIMO

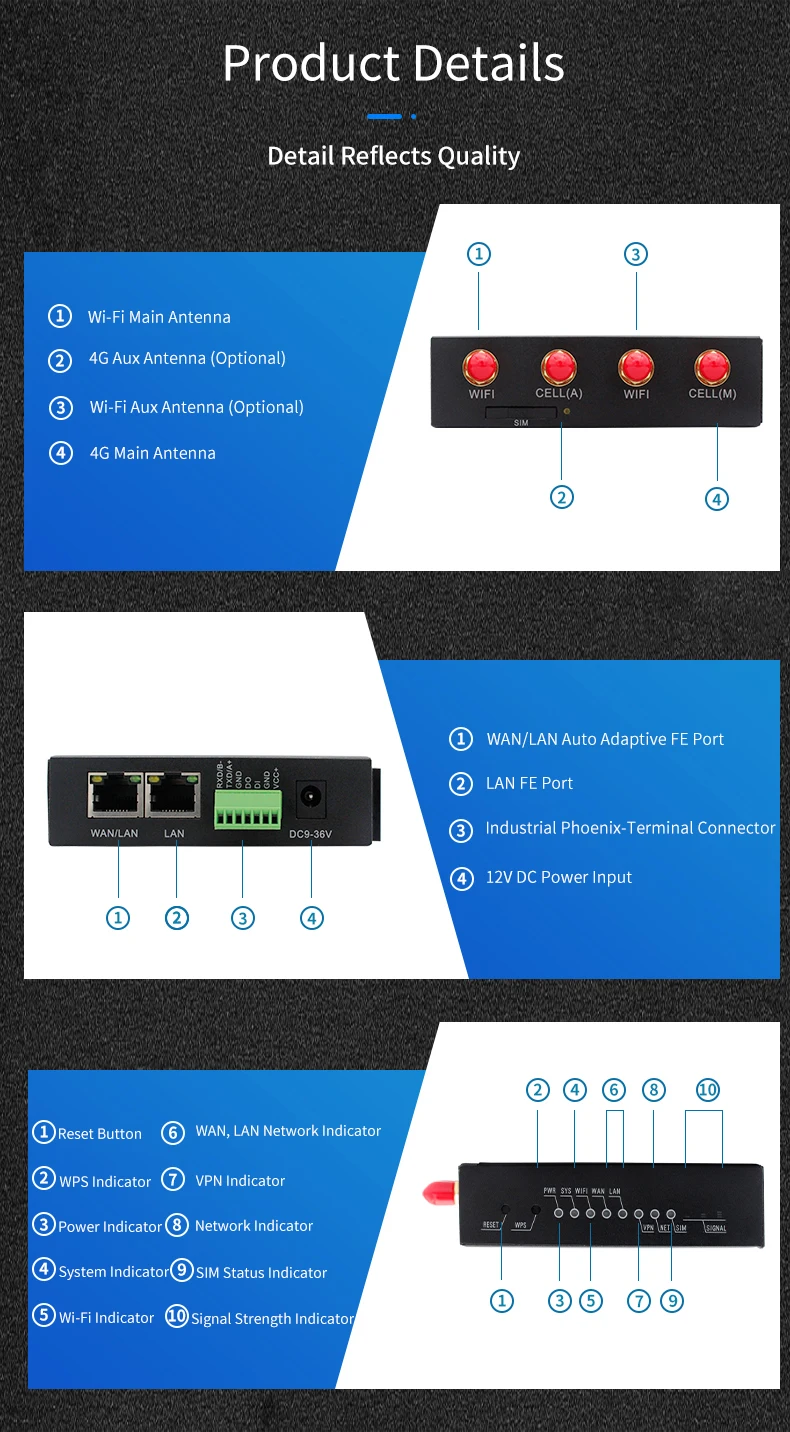

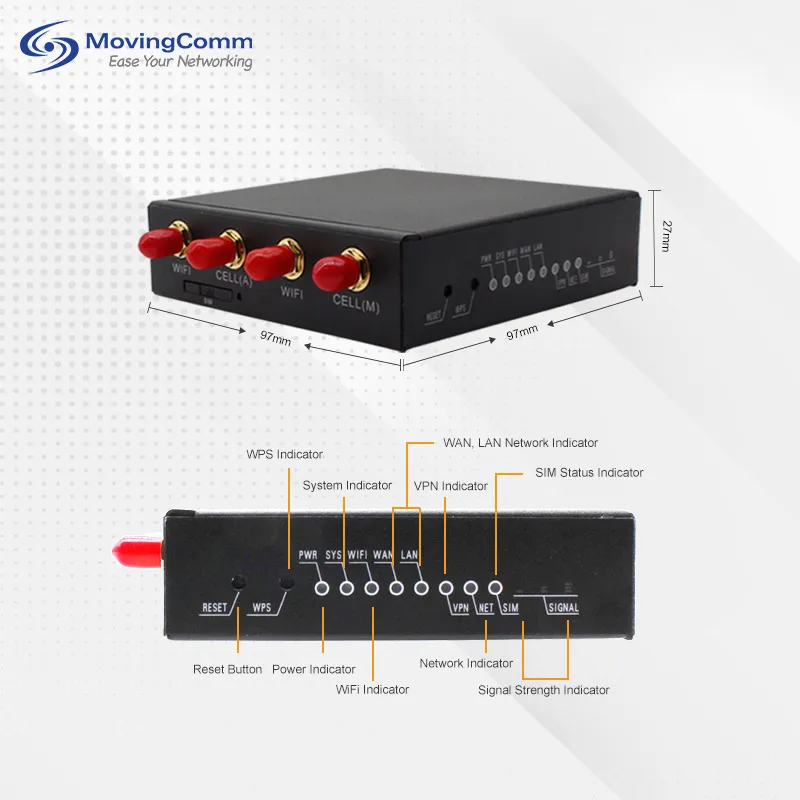

Indicators
PWR LED Indicator x 1

SYS LED Indicator x 1

WIFI LED Indicator x 1

WAN LED Indicator x 1

LAN LED Indicator x 1

VPN LED Indicator x 1

NET LED indicator x 1

SIM Card Status LED indicator x 1

CELLULAR Signal Strength LED Indicator x 3

Power Input
Power Type
12VDC/1A

Power Range
9~36VDC Wide Power Input

Power Consumption
<450mA (12V), Average 170mA@12V

Watchdog
Built-in Hardware Watchdog, Support Device Operation Self-Check Technology, Auto Recovery From Device Failure

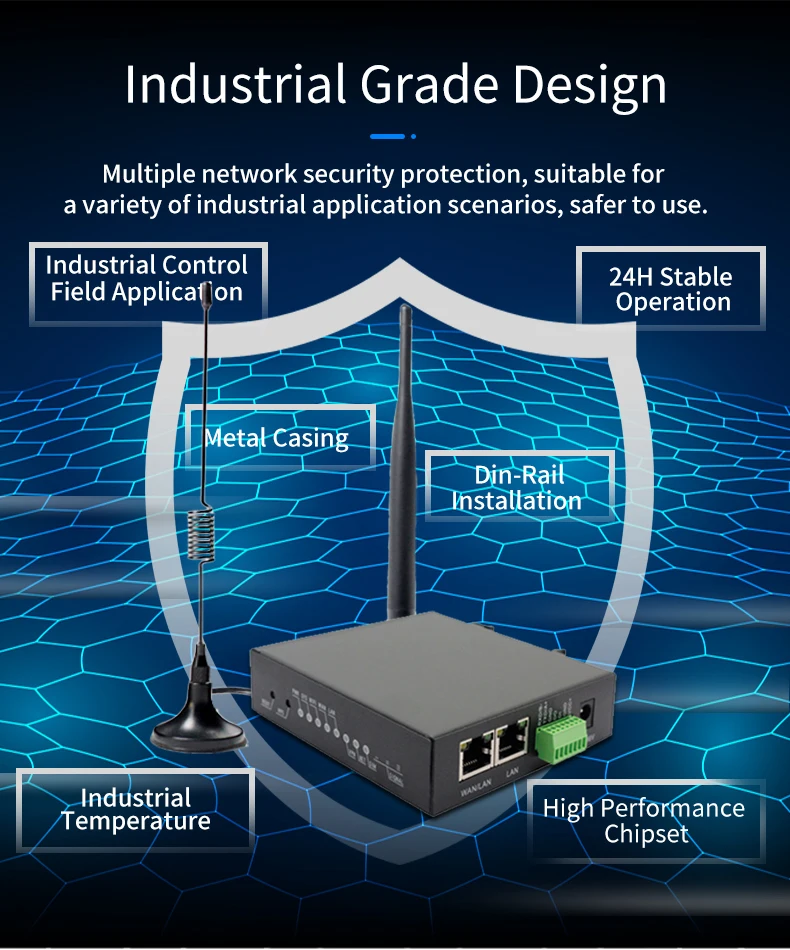

Enclosure
Ruggedized Metal Casing. The Casing and The System Are Safely Isolated, Especially Suitable for Industrial Control Field Applications.

Product Dimensions
97mm x 112mm x 24mm (Excluding Antenna and Mounting Sets)

Weight
Approx. 280g (Excluding Antenna and Mounting Sets)

Environment
Operating Temperature: -35°C to 75°C

Firmware
Linux SDK
