The HA-102
has a “B+” transponder and has a 5watt transmission power

5 watts CLASS B+ AIS Transponder Dual Channel Support NMEA0183 5Pin

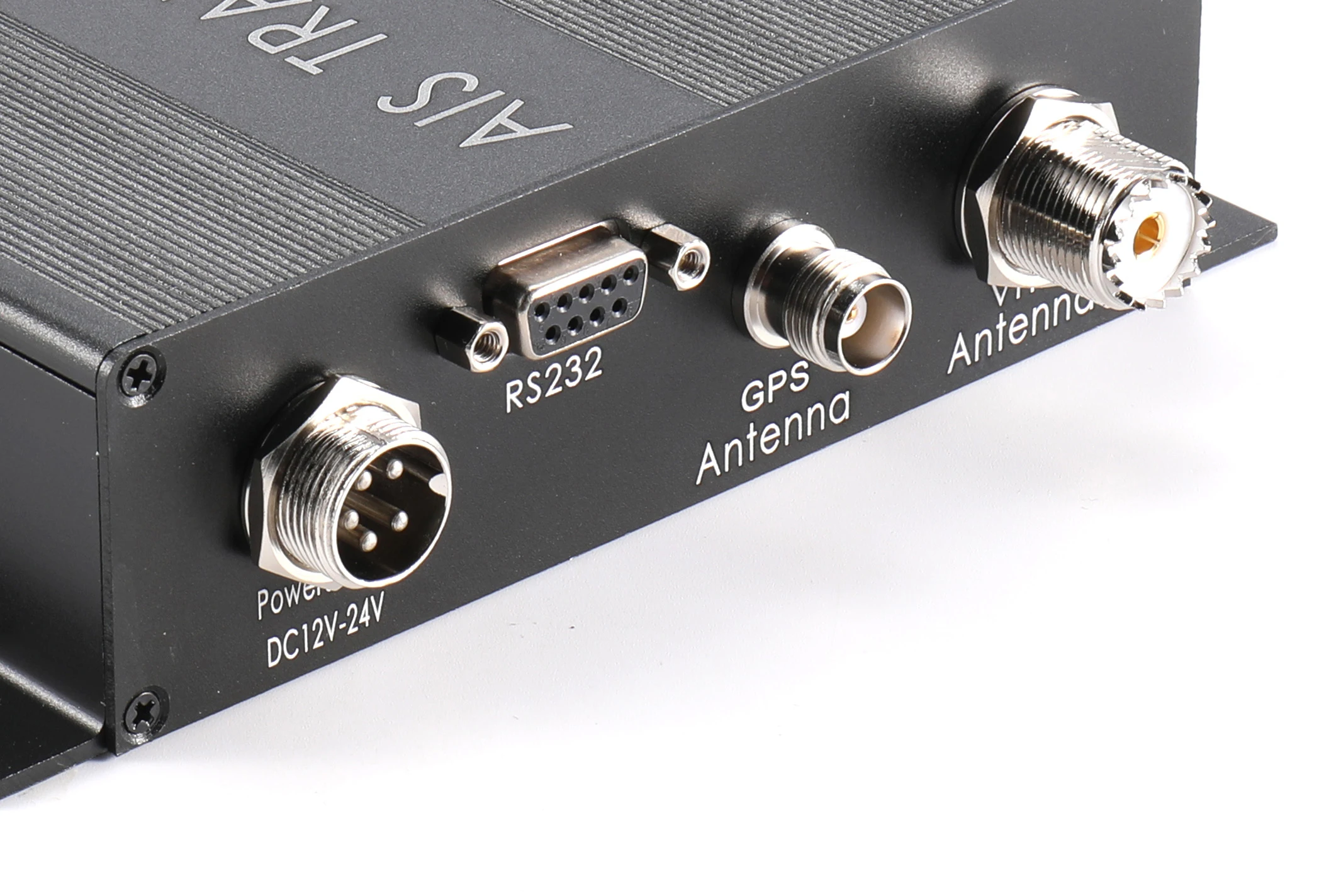

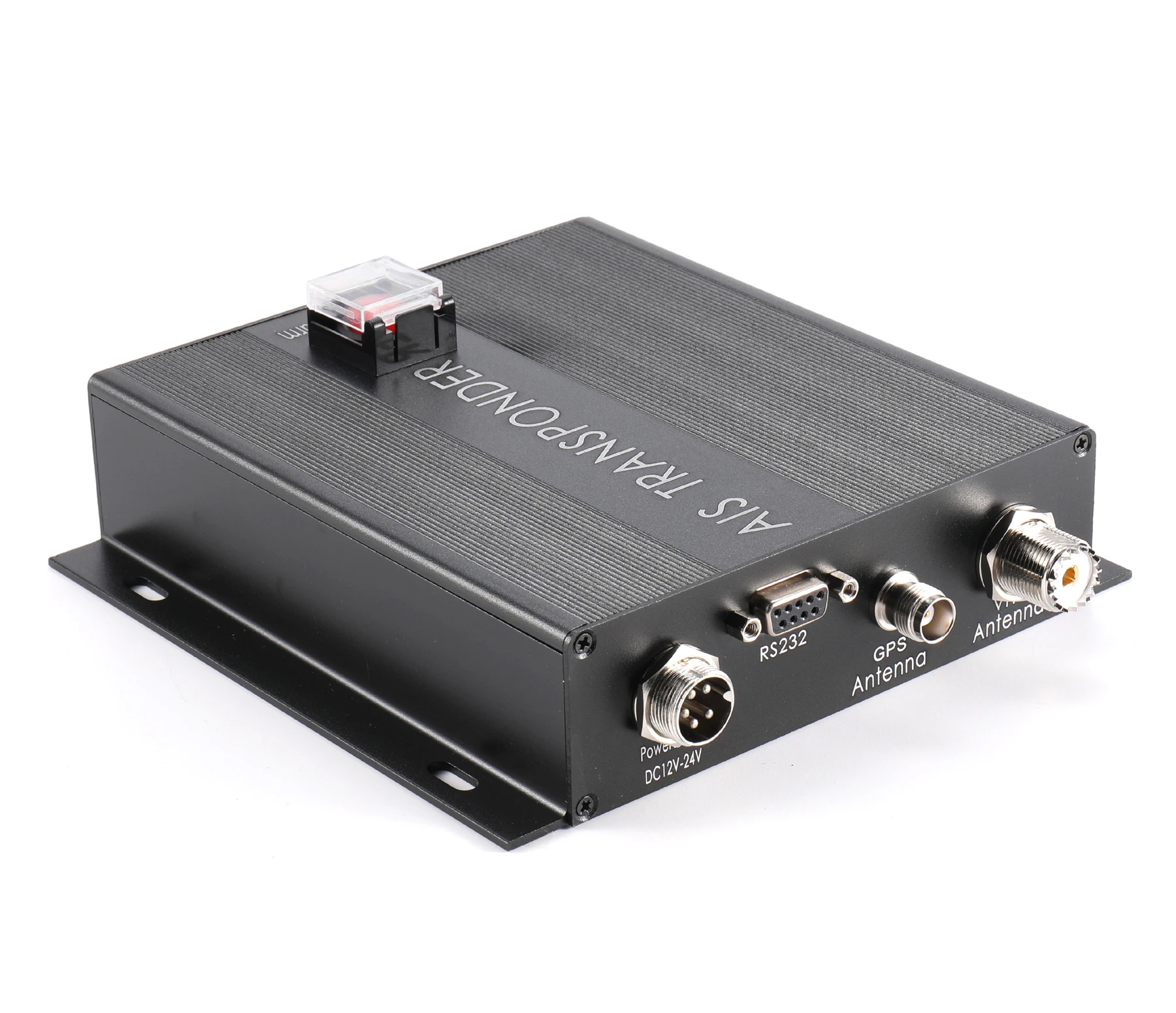

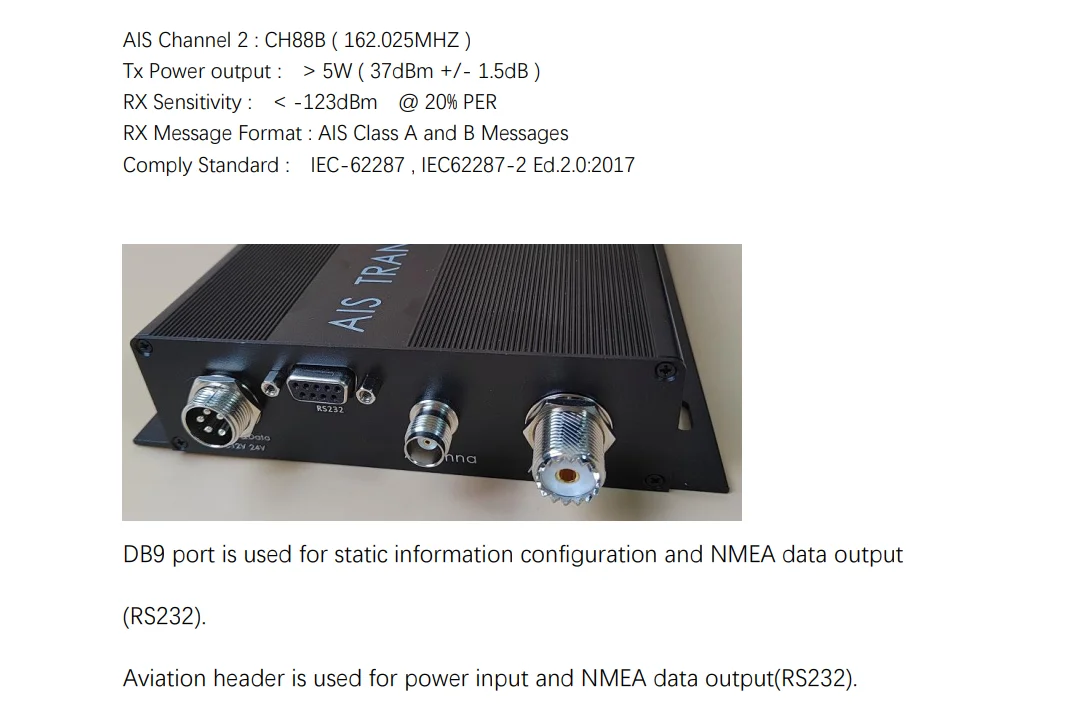

the VHF Antenna connection port is “SO239/PL259”



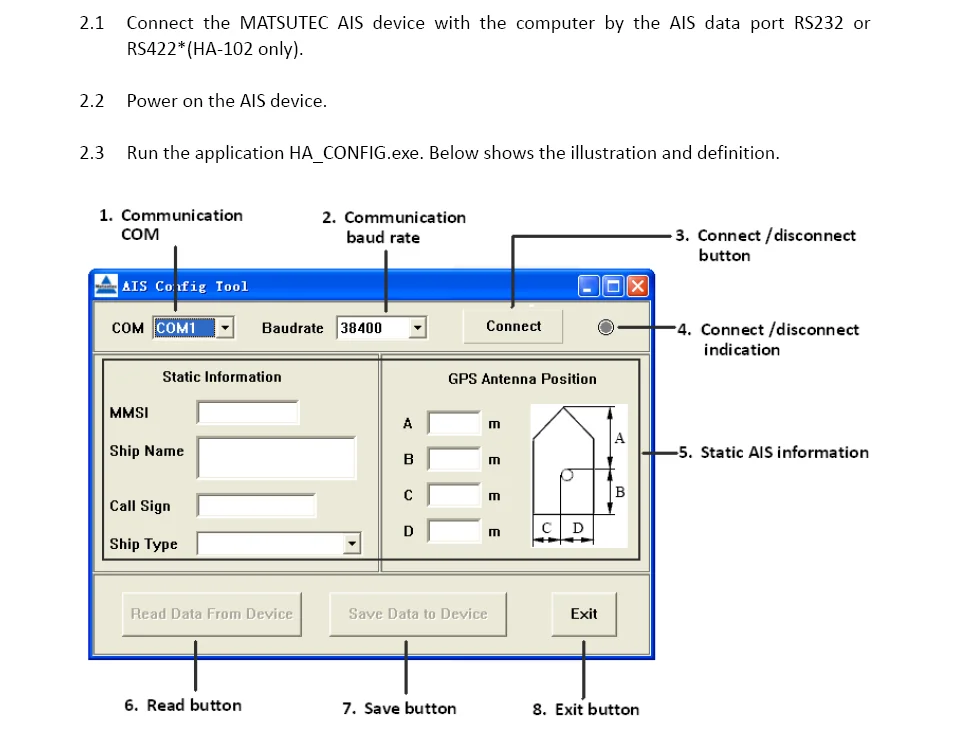

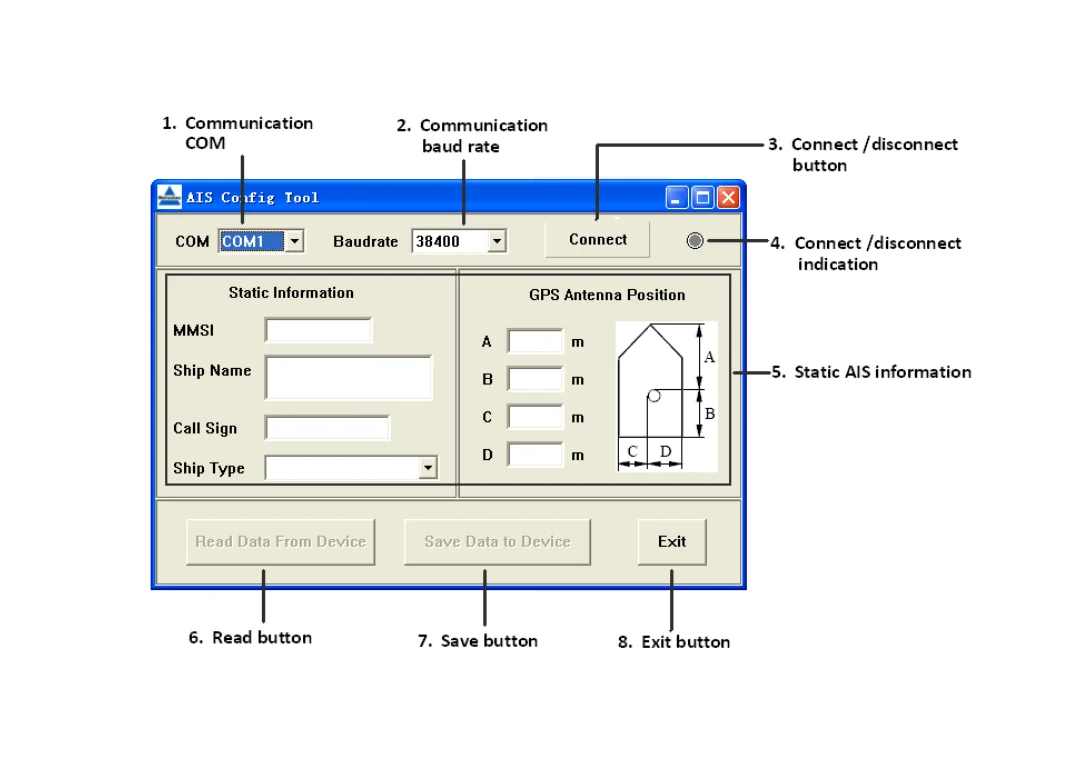

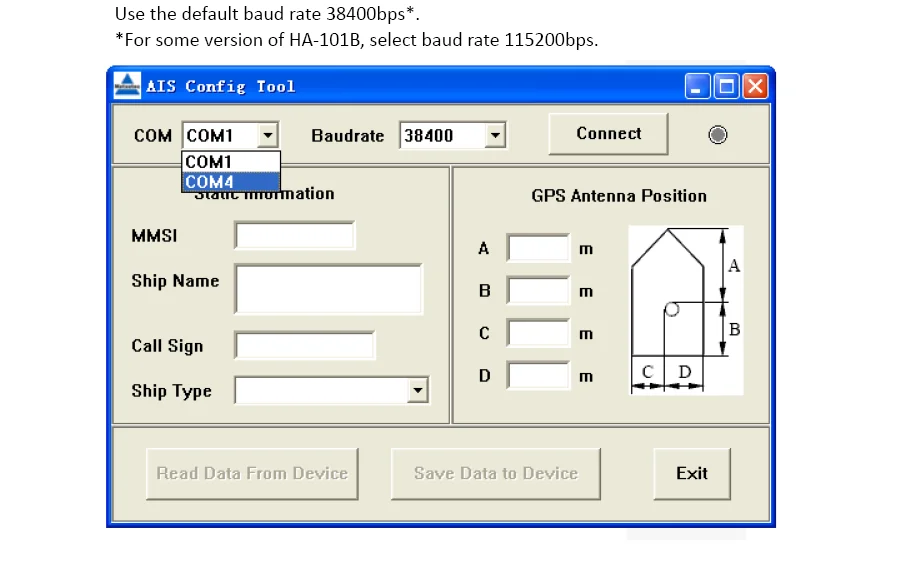

HA-102:An important factor is being able to re-enter a different MMSI #, boat name…

Power supply：
Power supply: Rated Voltage: +12VDC
Extreme Voltage: +9.6VDC，+24VDC
Electrical functions are in accordance with IEC 62297-1

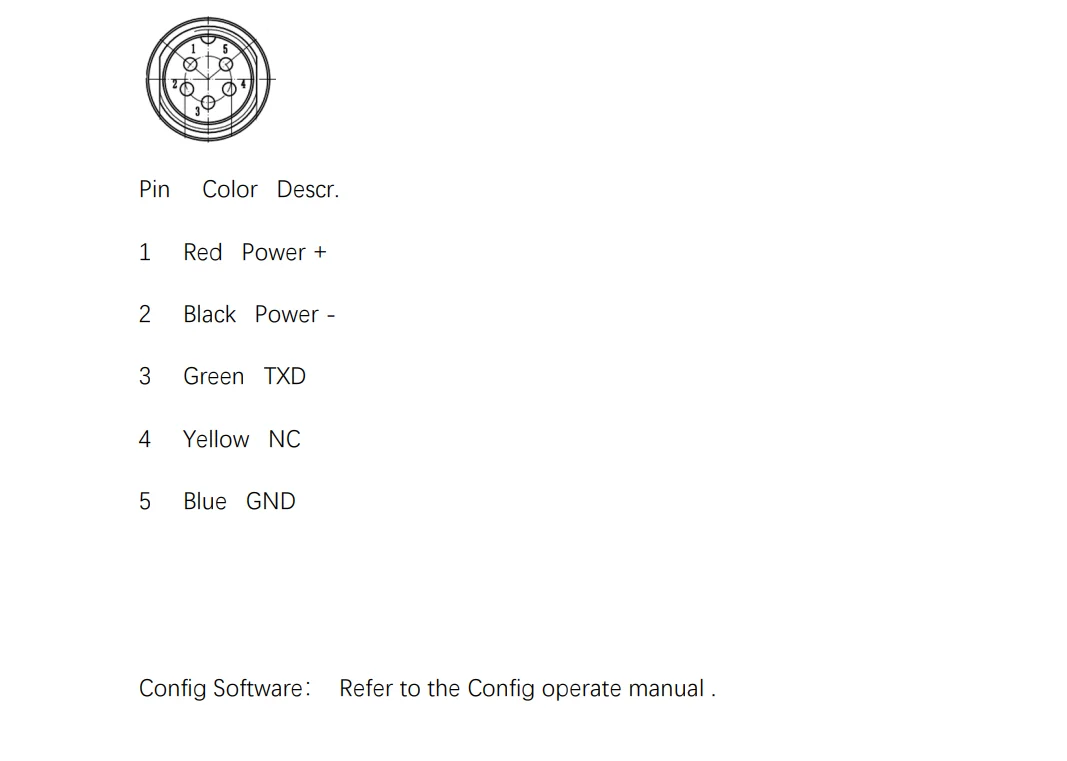

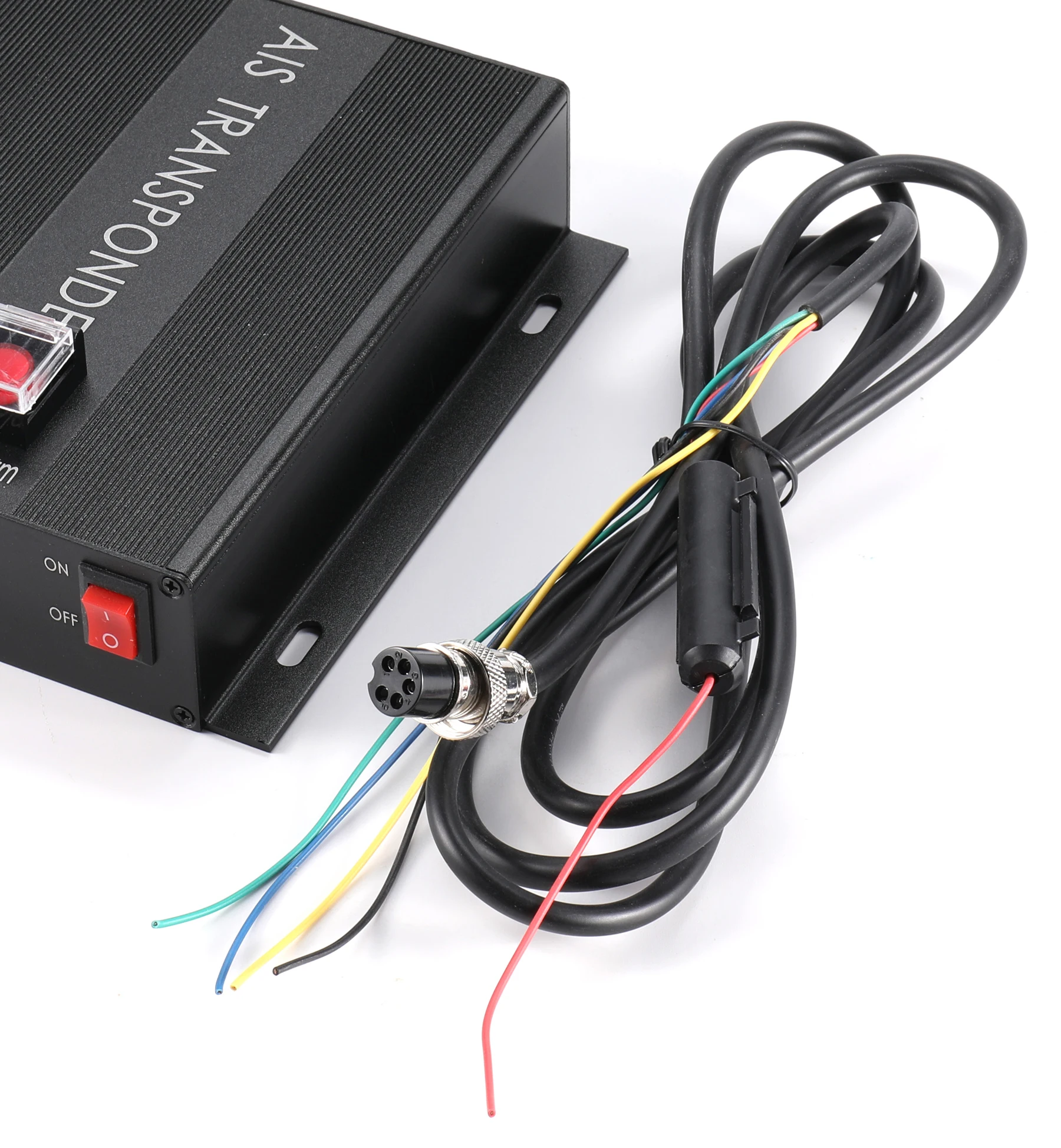

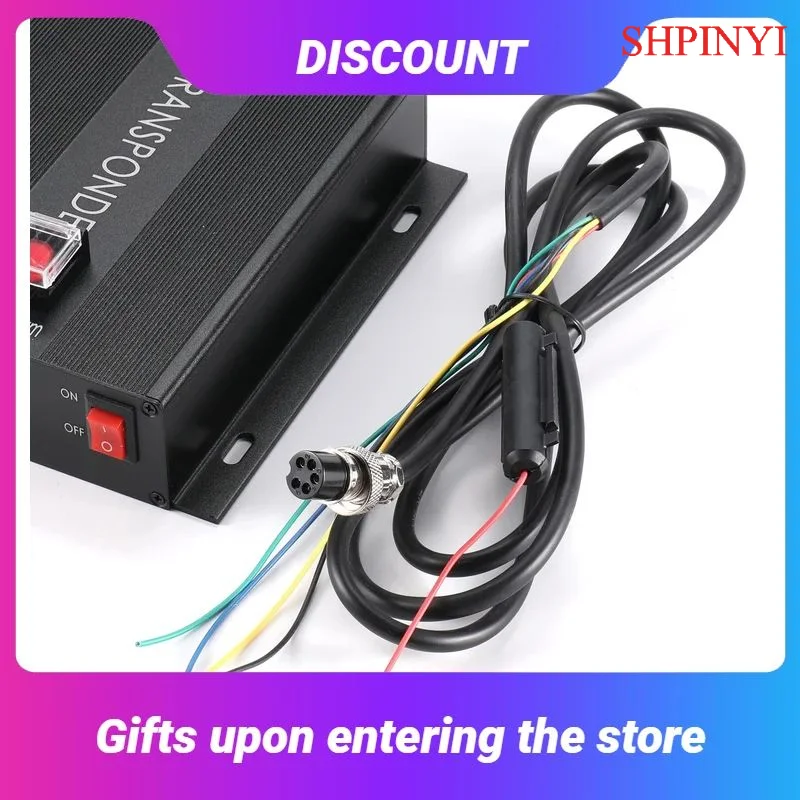

Pin1:Red Power+;

Pin2: Black Power-;

Pin3(output): Green TXD;

Pin4:Yellow NC;

Pin5: Blue GND;

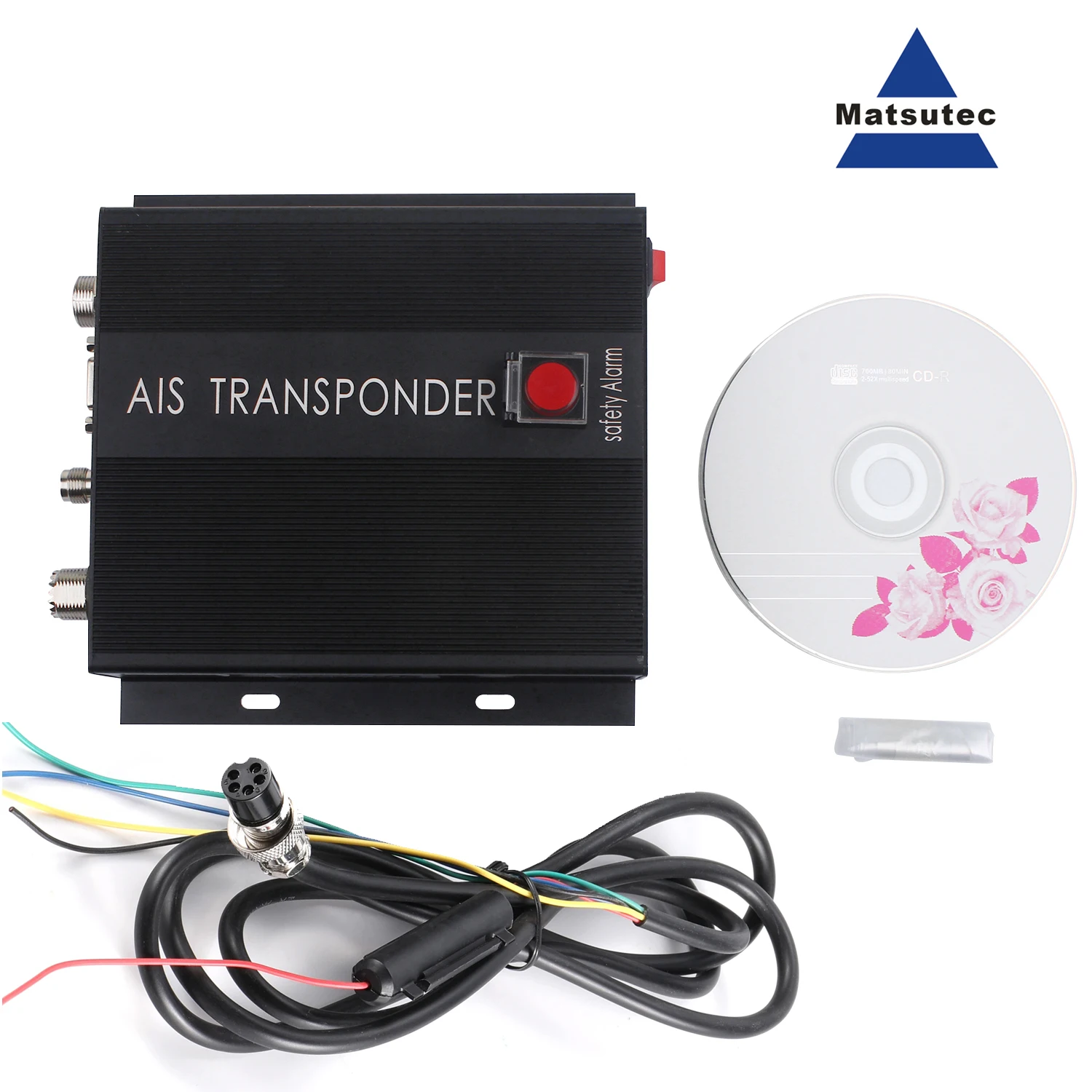

Ｇentle reminder: Package have not include GPS antenna and VHF antenna, HA-102 can use other brands of antenna , are compatible.

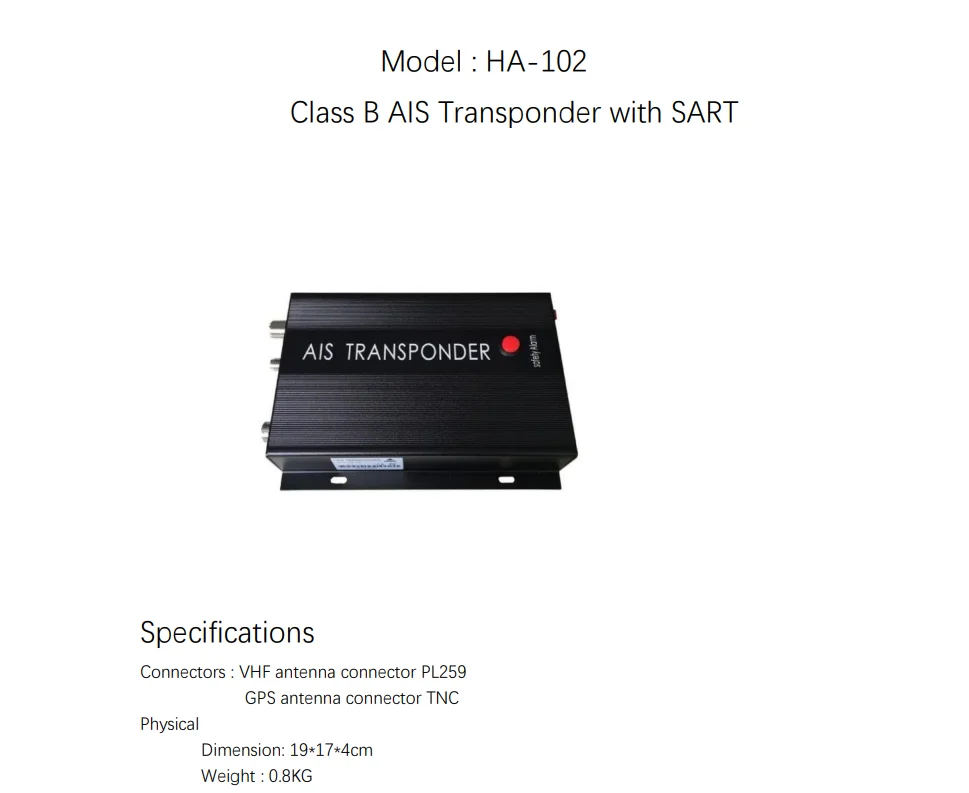

Matsutec Class B AIS Transponder
Model: HA-102

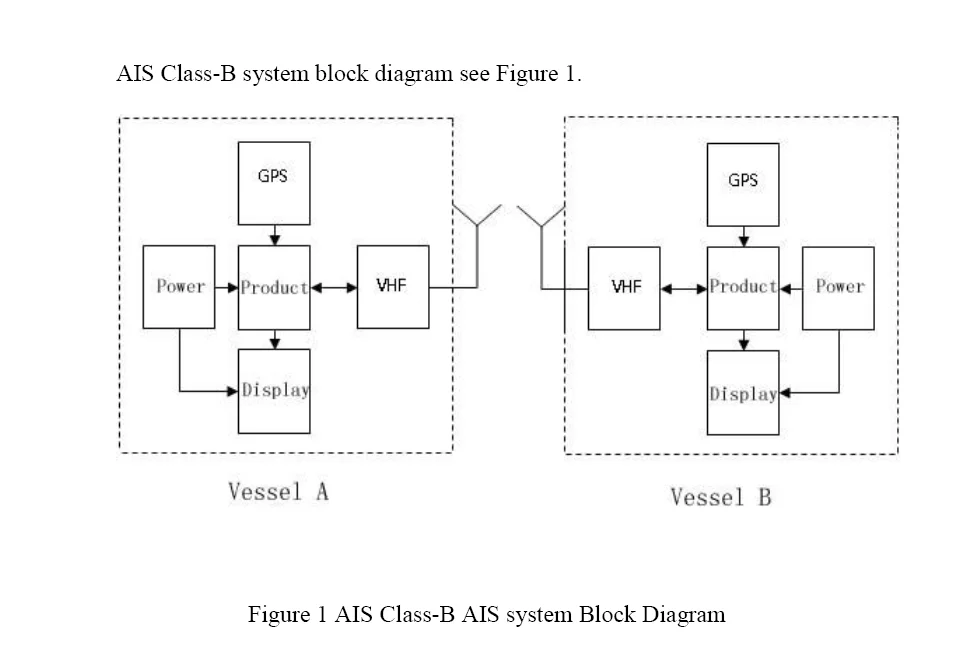

FEATURES

Electrical function is accordance with IEC 62297-1
Dual Channel function: Two TDMA receivers ar receiving datum in two independent channels at the same time, and one TDMA transmitter is transmitting in two independent channels alternately.
SOTDMA function can avoid and solve communication conflict.
Transponder has external serial data interface(RS-422, RS-232).
Transmit and reciever safety message, and equipped with “SOS” safety button.
Support three operation mode: Carrier-sense mode, assigned mode and polled mode.
Internal GPS reciever, as data source for position, COG and SOG can be connected to all devices compatible to GPS and PC, PDA, ECDIS, RADAR, etc.

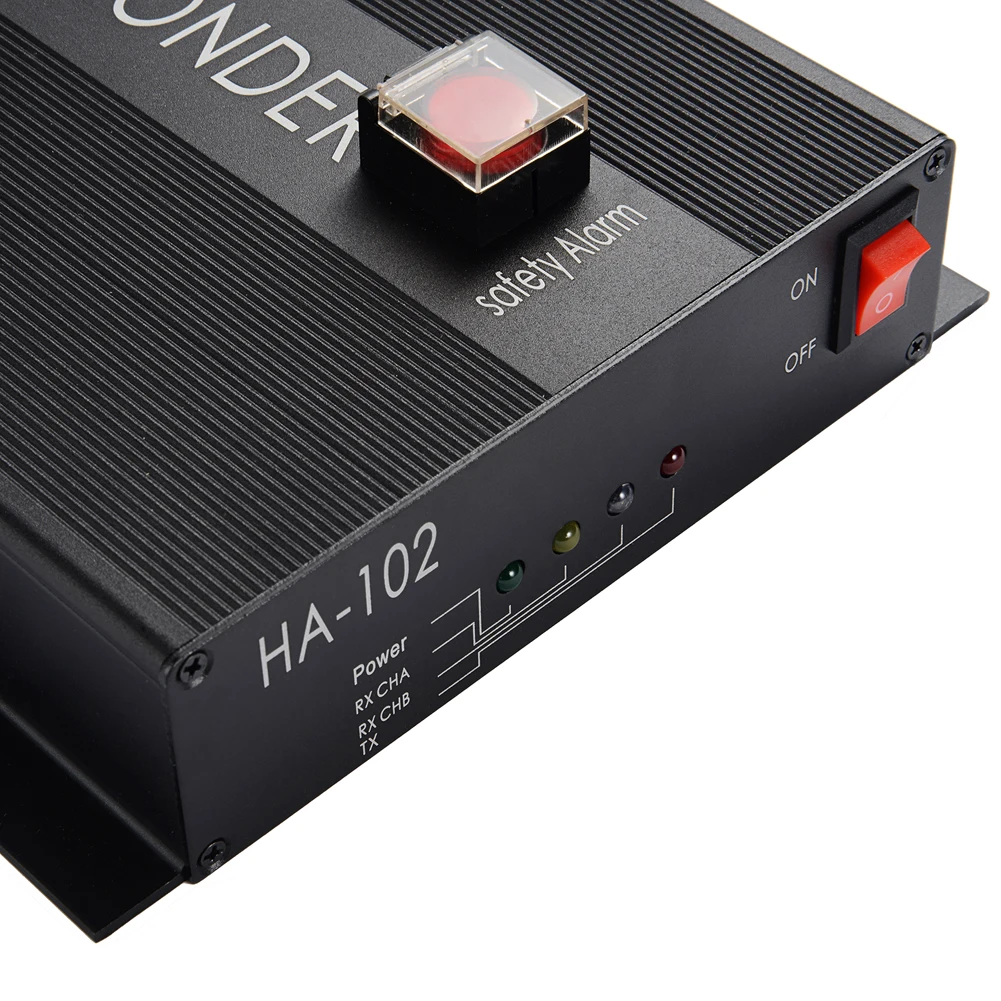

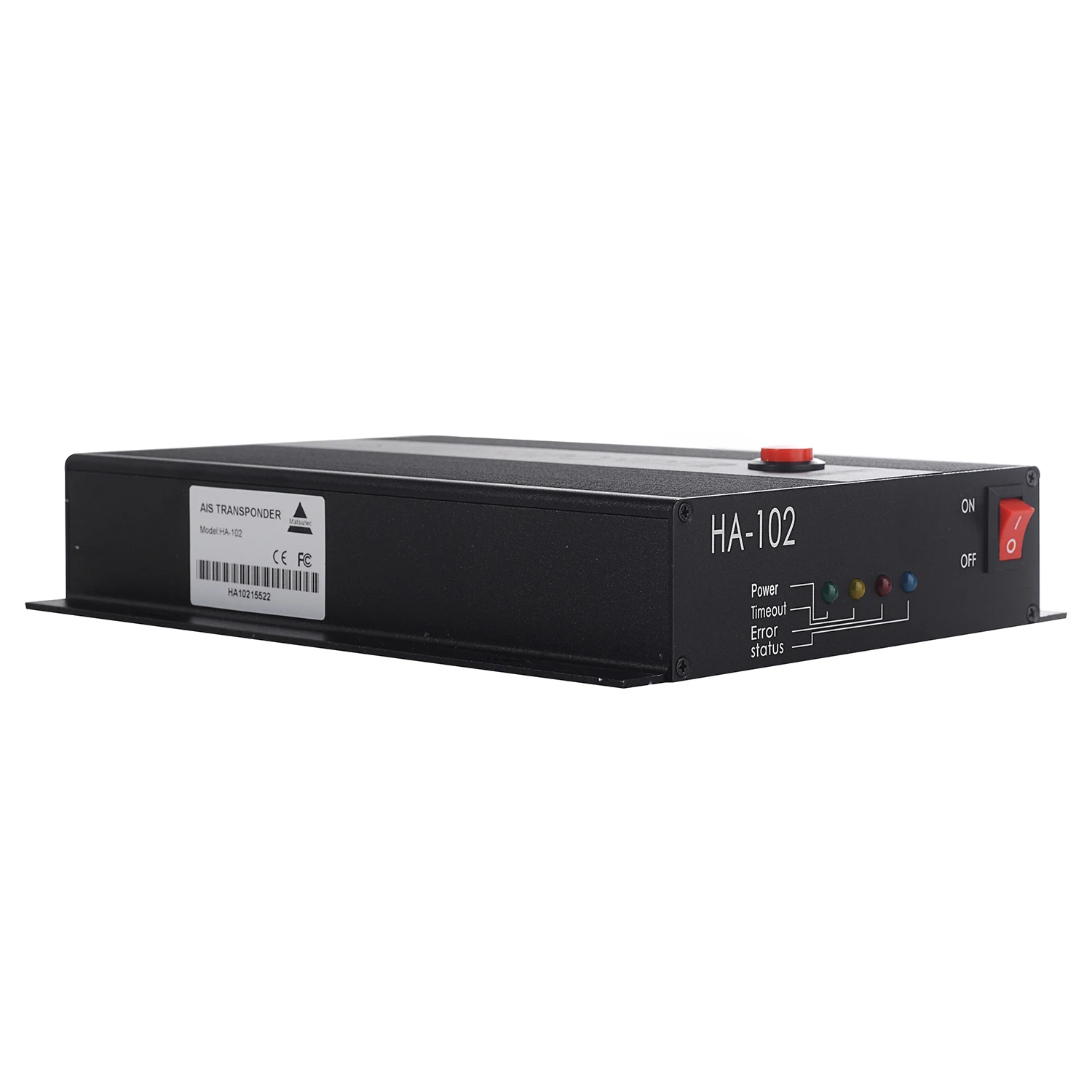

Alarm and indication (via LED) for power , error, time-out, status.

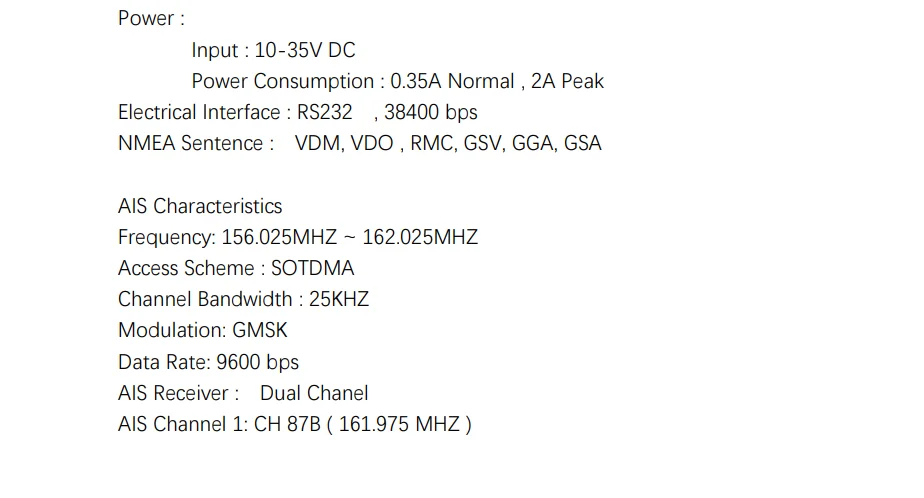

Specifications

STANDARDS
IEC 62297-1

IEC 61162-1

IEC 60945-2002

VHF RECEIVER

Frequency Range
156.025MHZ ~ 162.025 MHZ

Channel Bandwidth
25 KHZ

Number of AIS Receivers
2 Receiver ( one time shared between

AIS/DSC ) / 1 Transmitter

CH-1
Default CH 87B ( 161.975 MHZ )

CH-2
Default CH 88B ( 162.025 MHZ )

Number of DSC Receiver
1 ( CH 70)

RX DSC
156.525 MHZ

Max. Usable Sensitivity
PER less 20% at -107dBm

VHF TRANSMITTER

Power Output
5 Watt ( 33 dBm±1.5dB )

Modulation
GMSK / FM

Data Rate
9.6K dps / per channel

Modulation Spectrum
IEC 62287

DSC RECEIVER

Modulation
1300 HZ / 2100 Hz FSK

Data Rate
1200 bps±30 ppm

Spurious Response Rejection
Over 70dB for Signal @ -104dBm; BER less 1%

Blocking
More 84dB for Signal @ -104dBm; BER less 1%

GPS RECEIVER

Receiving Channels
12 Channels

Acquisition Sensitivity
-140dBm

Tracking Sensitivity
-150 dBm

Position Accuracy
< 2.5m CEP ( GPS ) without SA

Output Rate
1 Hz

POWER SUPPLY

Supply Voltage
12V DC ( 10V ~ 20V )

Power Consumption
Less than 10W

MAIN UNIT

4 LED Indicator Working Status

1 ON/OFF Switcher

INTERFACE

Ports
NMEA 0183 / RS-422 / RS-232

GPS Antenna ( Optional )
Female TNC Connector

VHF Antenna ( Optional )
Female Type M Connector

( Type N Connector optional )

ENVIROMENT

Operating Temperature
Antenna : -25 ~ 70 C Celcius

Others : -15 ~ 55 C Celcius

Storage Temperature
-25 ~ 70 C Celcius

Humidity
Operating: 0 ~ 95 RH at 40 C Celcius

GPS Antenna operating : 100% Hermetically sealed

VHF Antenna operating : 100% Hermetically sealed

Vibration
IEC 60945

Waterproof
IPX5

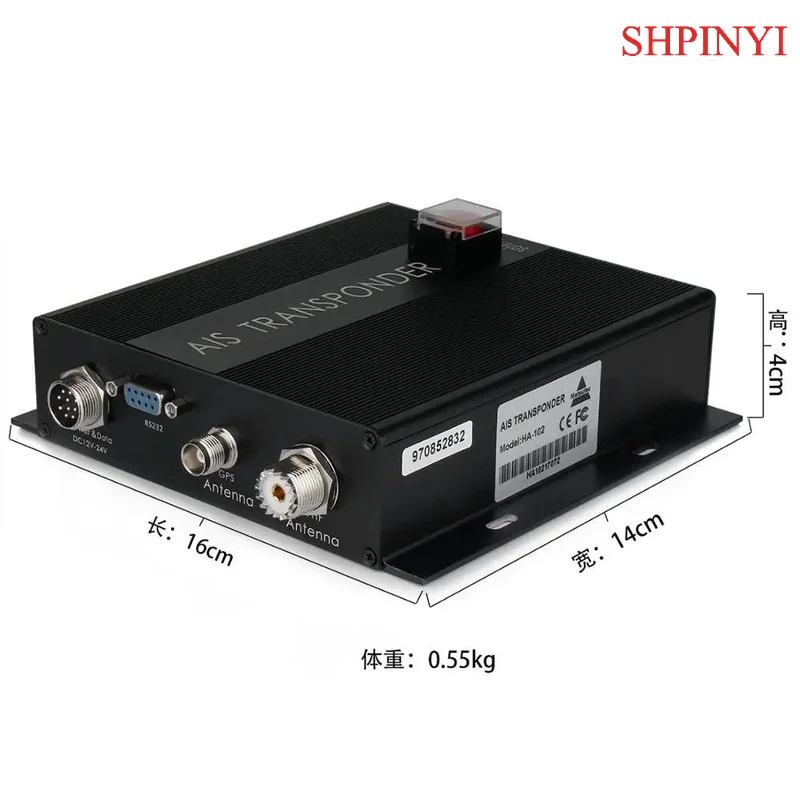

PHYSICAL

Size in mm ( W )
234mm

Size in mm ( H )
40mm

Size in mm ( D )
167mm

Weight
<1 Kg
